Image Classification using AWS SageMaker

Use AWS Sagemaker to train a pretrained model that can perform image classification by using the Sagemaker profiling, debugger, hyperparameter tuning and other good ML engineering practices. This can be done on either the provided dog breed classication data set or one of your choice.

Source code: vnk8071/image_classification_using_sagemaker

Dataset​

The provided dataset is the dogbreed classification dataset which can be found in the classroom.

!wget https://s3-us-west-1.amazonaws.com/udacity-aind/dog-project/dogImages.zip

Access​

Upload the data to an S3 bucket through the AWS Gateway so that SageMaker has access to the data.

session = sagemaker.Session()

bucket = "image-classification-using-sagemaker"
print("Default Bucket: {}".format(bucket))

region = session.boto_region_name
print("AWS Region: {}".format(region))

role = sagemaker.get_execution_role()
print("RoleArn: {}".format(role))

os.environ["DEFAULT_S3_BUCKET"] = bucket

!aws s3 sync ./dogImages/train s3://${DEFAULT_S3_BUCKET}/data/train/
!aws s3 sync ./dogImages/valid s3://${DEFAULT_S3_BUCKET}/data/valid/
!aws s3 sync ./dogImages/test s3://${DEFAULT_S3_BUCKET}/data/test/

Hyperparameter Tuning​

Model​

Choose VGG16 as the pretrained model and replace the last layer with a new layer that has the number of classes as the output. This model is DNN with 3 hidden layers and 1 output layer.

def net(target_class_count):
    '''
        Using a VGG16 pretrained model
    '''
    model = models.vgg16(pretrained=True)
    for param in model.parameters():
        param.requires_grad = False

    num_features = model.classifier[-1].in_features
    features = list(model.classifier.children())[:-1]
    features.extend([nn.Linear(num_features, target_class_count)])
    model.classifier = nn.Sequential(*features)

    return model

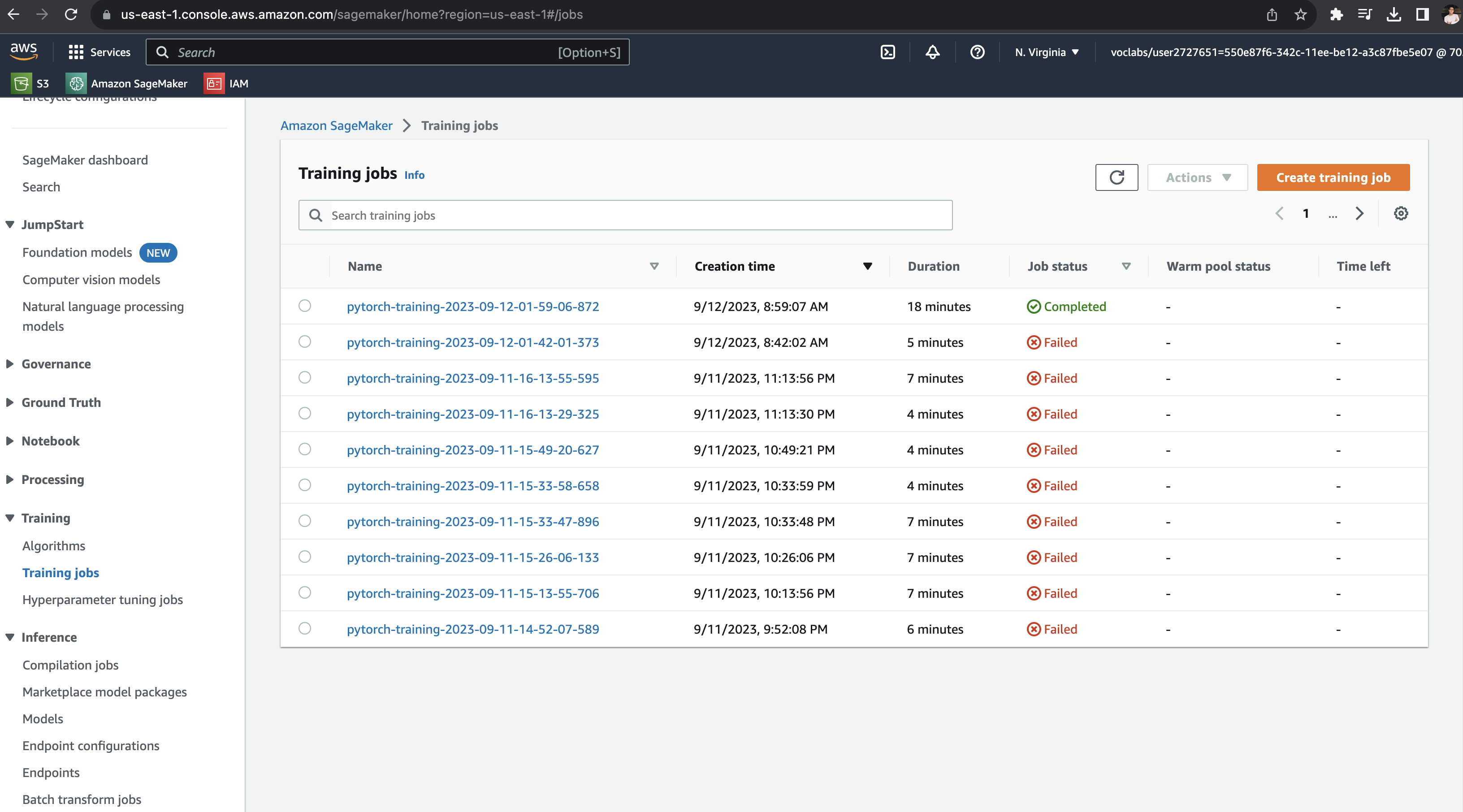

Training Job​

Training Job

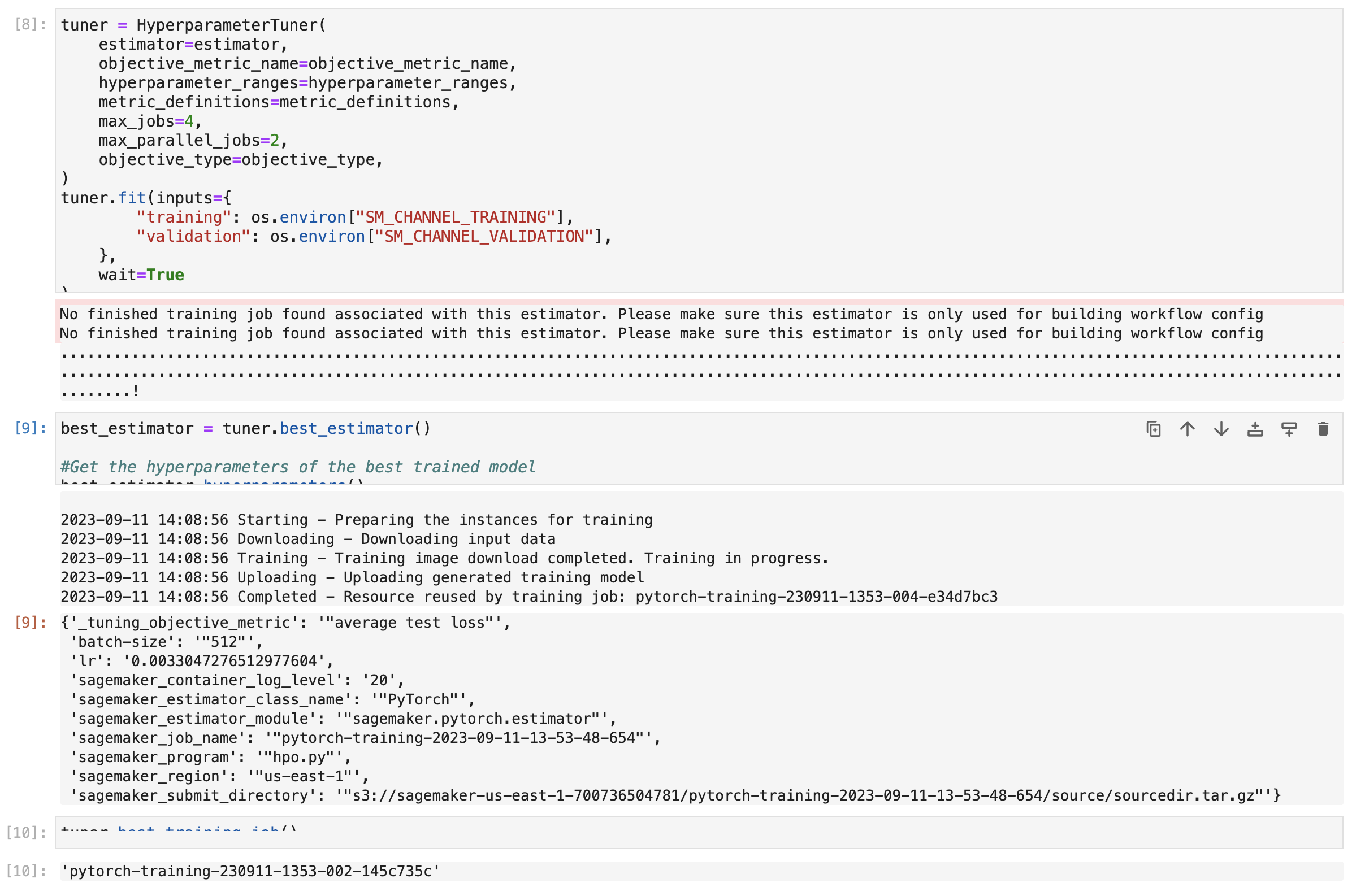

Hyperparameter Tuning Job​

  • Learning rate with a range of 0.001 to 0.1 and type of continuous (ContinuousParameter)
  • Batch size with a range of 32, 64, 128, 256, 512 and type of categorical (CategoricalParameter)
  • Metric definition for the objective metric of average test loss
hyperparameter_ranges = {
    "lr": ContinuousParameter(0.001, 0.1),
    "batch-size": CategoricalParameter([32, 64, 128, 256, 512]),
}

objective_metric_name = "average test loss"
objective_type = "Minimize"
metric_definitions = [{"Name": "average test loss", "Regex": "Test set: Average loss: ([0-9\\.]+)"}]

Hyperparameter Tuning Job

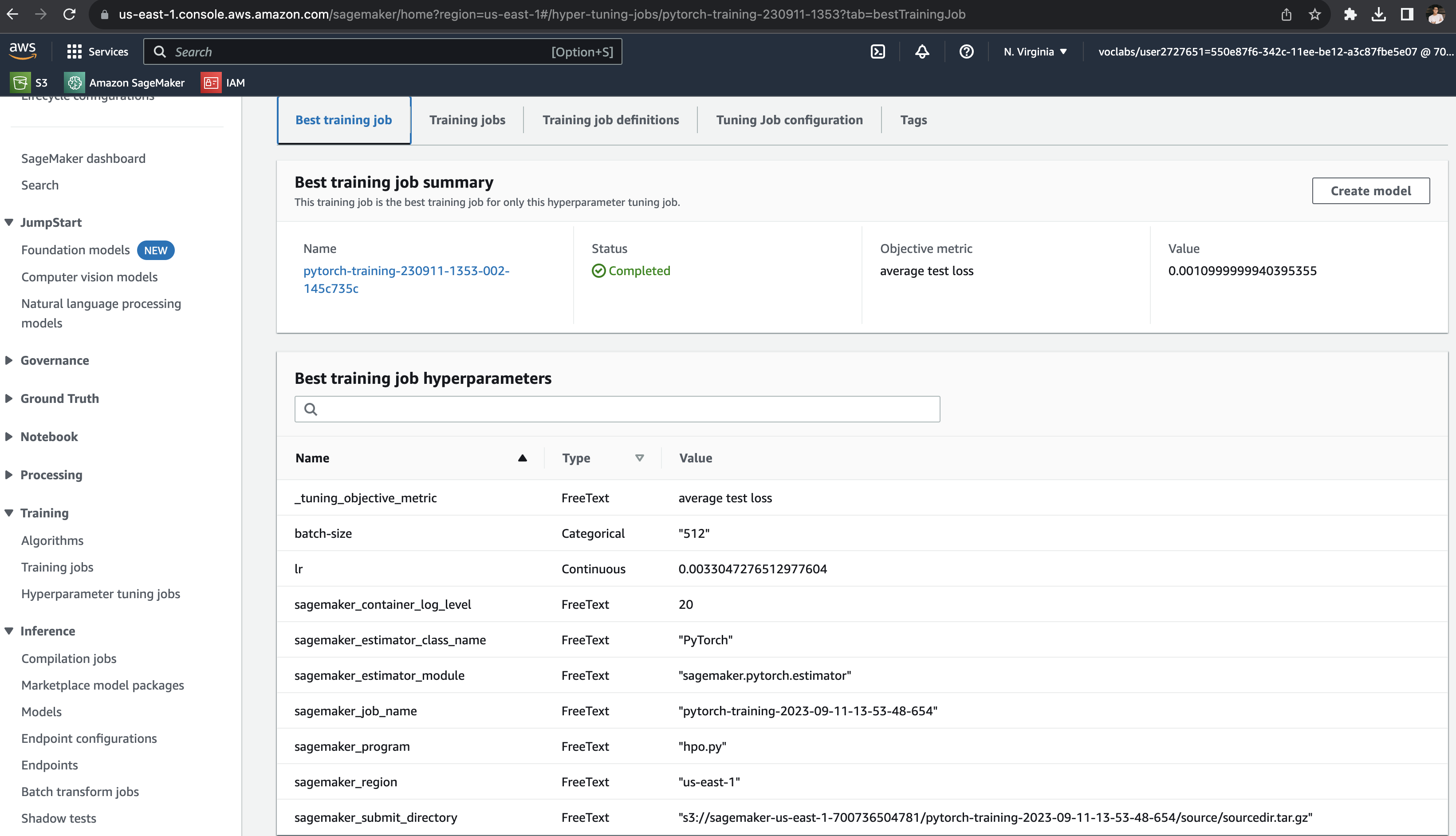

Best Hyperparameters​

hyperparameters = {
    "lr": 0.0033047276512977604,
    "batch-size": 512,
}

Hyperparameter Tuning Job

Debugging and Profiling​

Use practice in the course to debug and profile the training job. Link: https://learn.udacity.com/nanodegrees/nd009t/parts/fb5cc8ed-69a8-4e9a-8d62-f034aa9f1994/lessons/e7ad71c4-e91e-46f1-a877-e37024fc2ebd/concepts/a7960dd1-1d8b-48ac-810b-ad34084dfba8

Follow the instructions:

rules = [
    Rule.sagemaker(rule_configs.loss_not_decreasing()),
    Rule.sagemaker(rule_configs.overfit()),
    Rule.sagemaker(rule_configs.overtraining()),
    Rule.sagemaker(rule_configs.poor_weight_initialization()),
    ProfilerRule.sagemaker(rule_configs.LowGPUUtilization()),
    ProfilerRule.sagemaker(rule_configs.ProfilerReport()),
]

profiler_config = ProfilerConfig(
    system_monitor_interval_millis=500, framework_profile_params=FrameworkProfile(num_steps=10)
)

collection_config_list = [
    CollectionConfig(
        name="CrossEntropyLoss_output_0",
        parameters={
            "include_regex": "CrossEntropyLoss_output_0",
            "train.save_interval": "10",
            "eval.save_interval": "1"
        }
    )
]


hook_config = DebuggerHookConfig(
    hook_parameters={"train.save_interval": "100", "eval.save_interval": "10"},
    collection_configs=collection_config_list
)

Results​

loss The loss of training decreases as the training progresses. The loss of validation increases as the training progresses. This is a sign of overfitting.

More details of the profiler html/pdf file: ProfilerReport/profiler-output/profiler-report.html

Model Deployment​

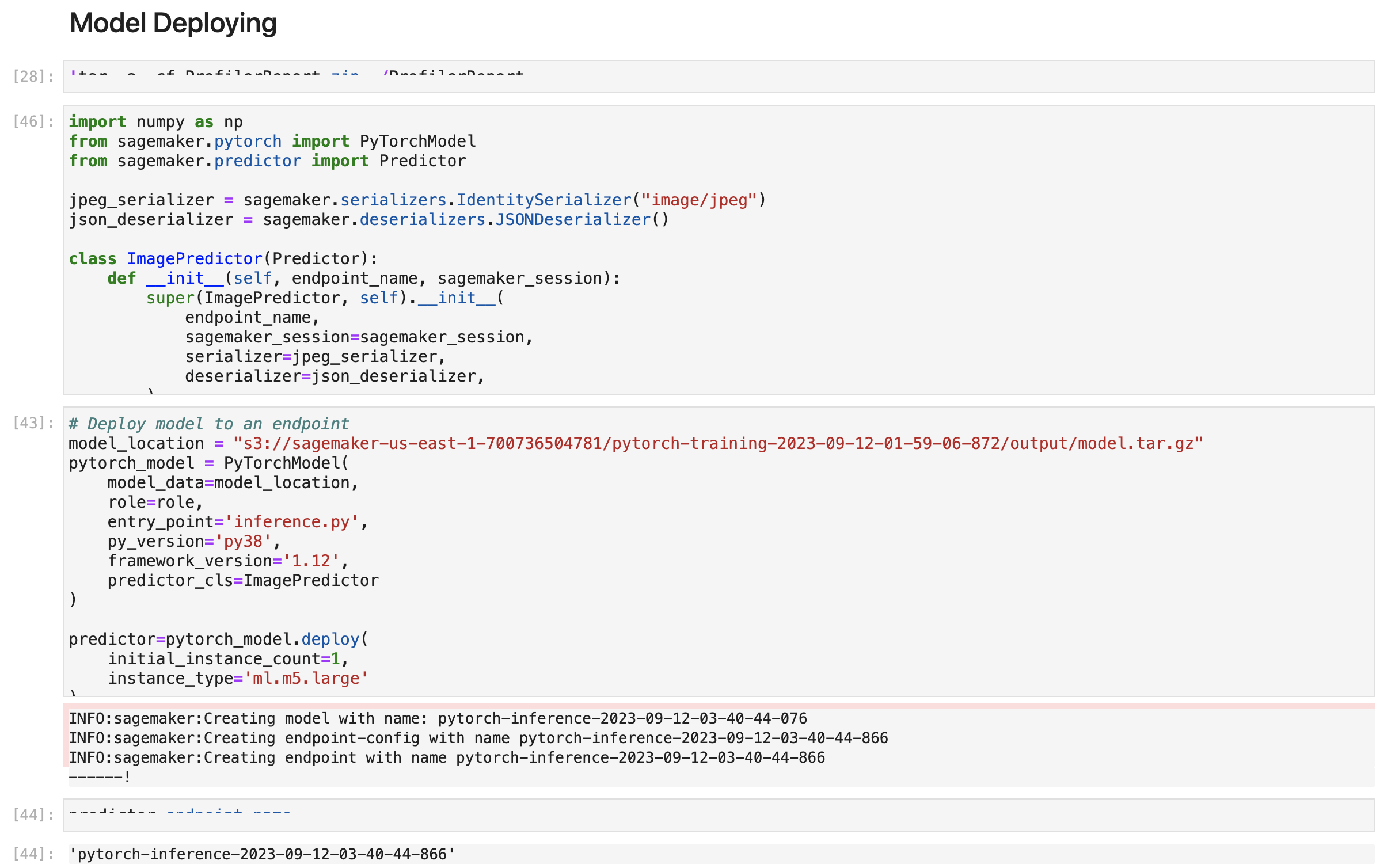

Deploy model​

Deploy model

The inference script already handles the data transformation to tensors, so we only need to pass image in bytes format as the payload for the endpoint.

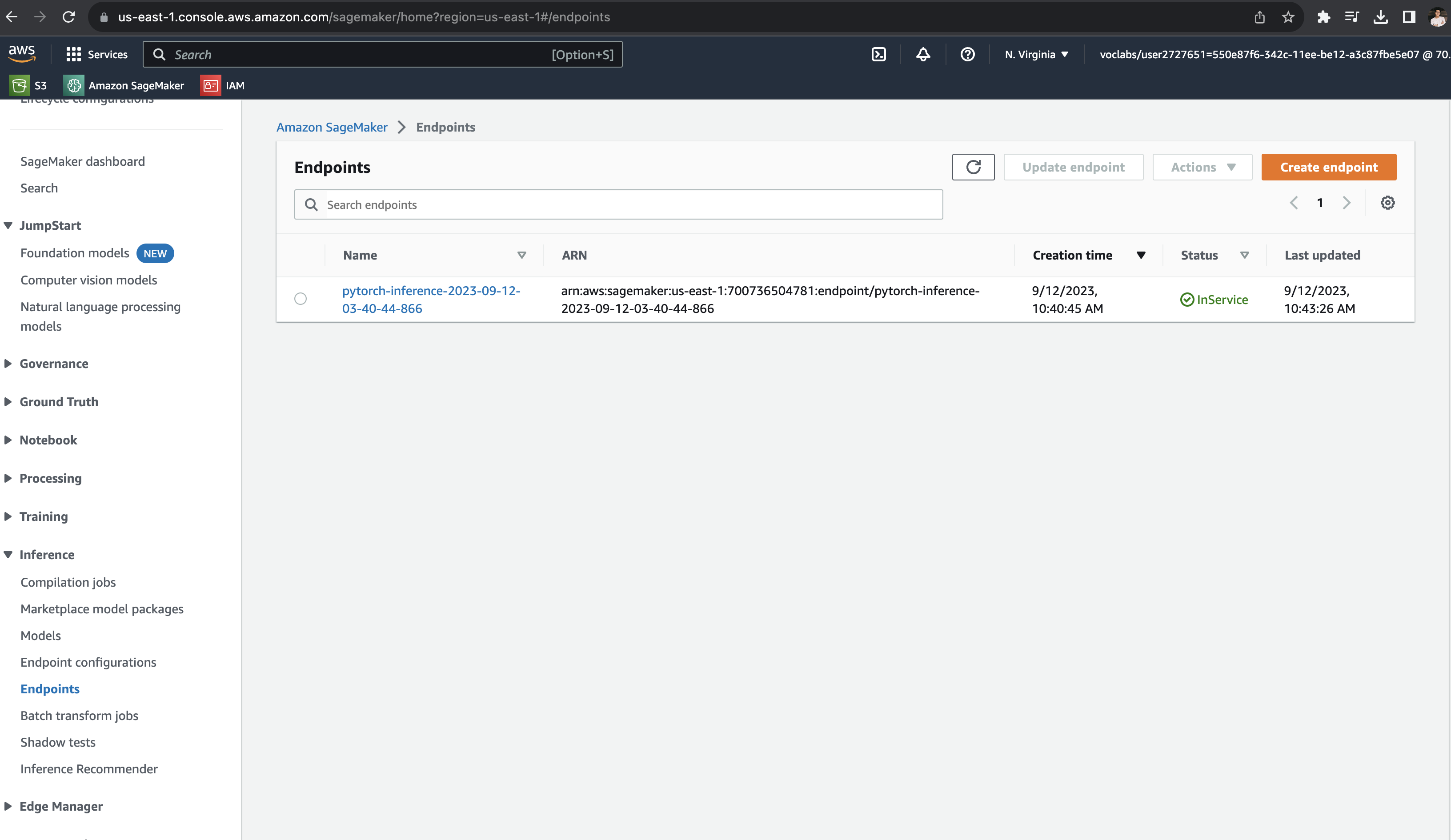

Endpoint​

Endpoint

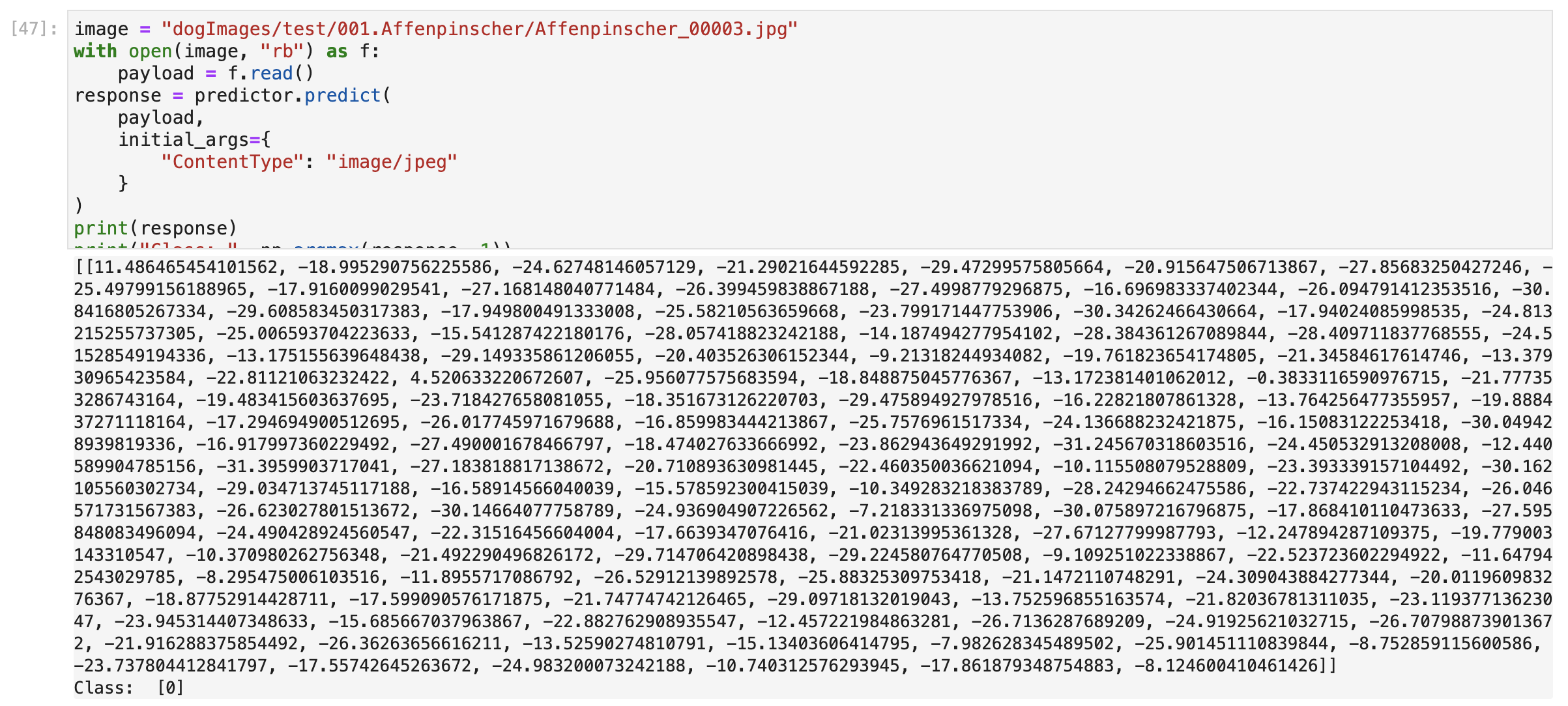

Inference​

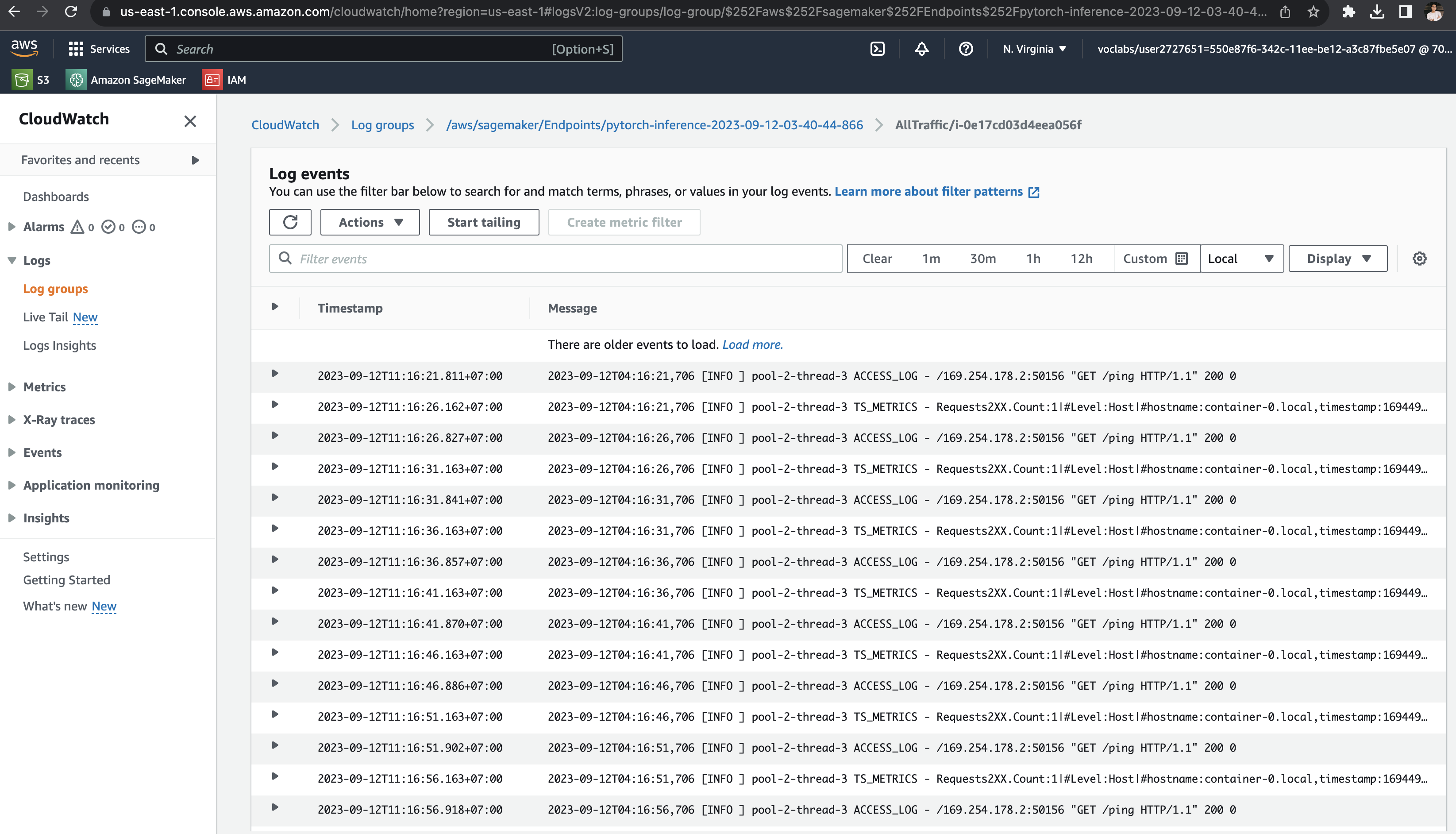

Debug inference with CloudWatch debug_inference

Model predicts correctly with image = dogImages/test/001.Affenpinscher/Affenpinscher_00003.jpg and label = 0

Inference

Standout Suggestions​

TODO (Optional): This is where you can provide information about any standout suggestions that you have attempted.
