Capstone Full Stack

Source code: vnk8071/capstone_fullstack_web

Full Stack Capsone Project

Udacity has decided to open a new digitally enabled cafe for students to order drinks, socialize, and study hard. But they need help setting up their menu experience.

You have been called on to demonstrate your newly learned skills to create a full stack drink menu application. The application must:

Display graphics representing the ratios of ingredients in each drink.
Allow public users to view drink names and graphics.
Allow the shop baristas to see the recipe information.
Allow the shop managers to create new drinks and edit existing drinks.

Database Setup

Create Postgres Database

dropdb drink
createdb drink

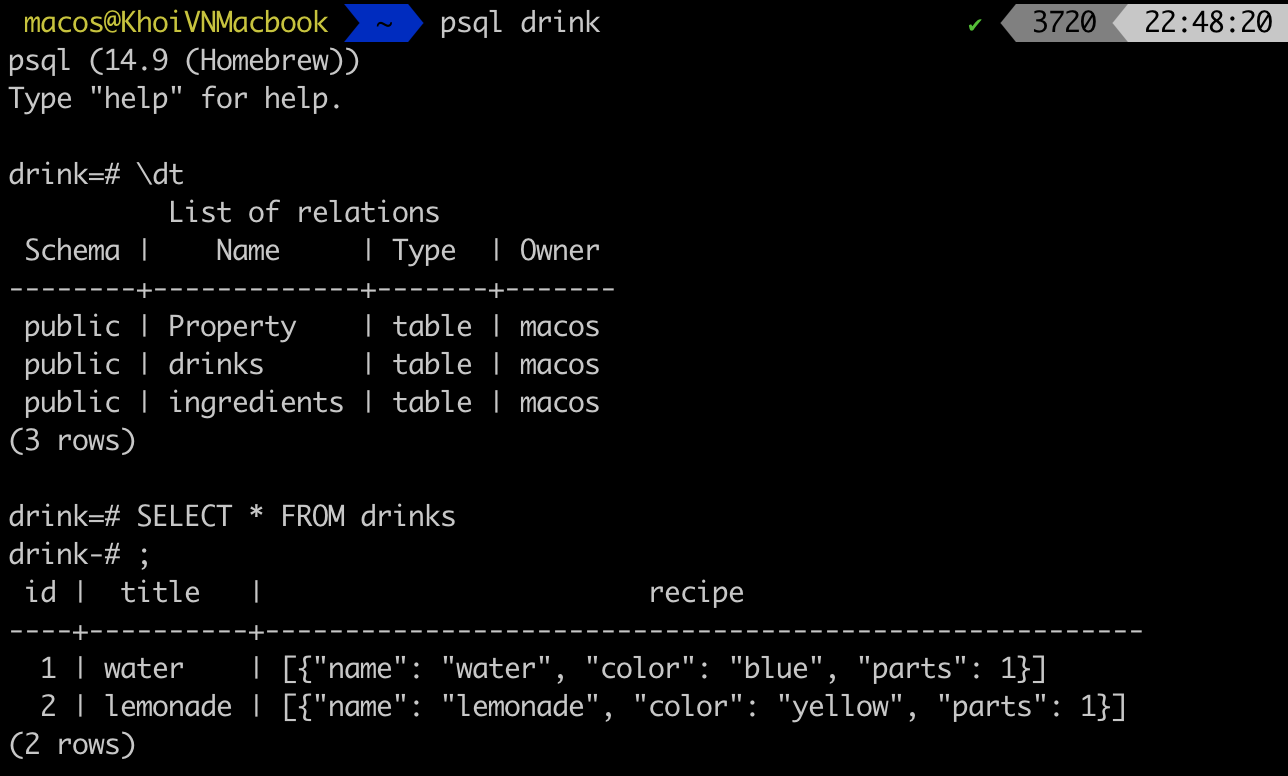

database

Auth0 Setup

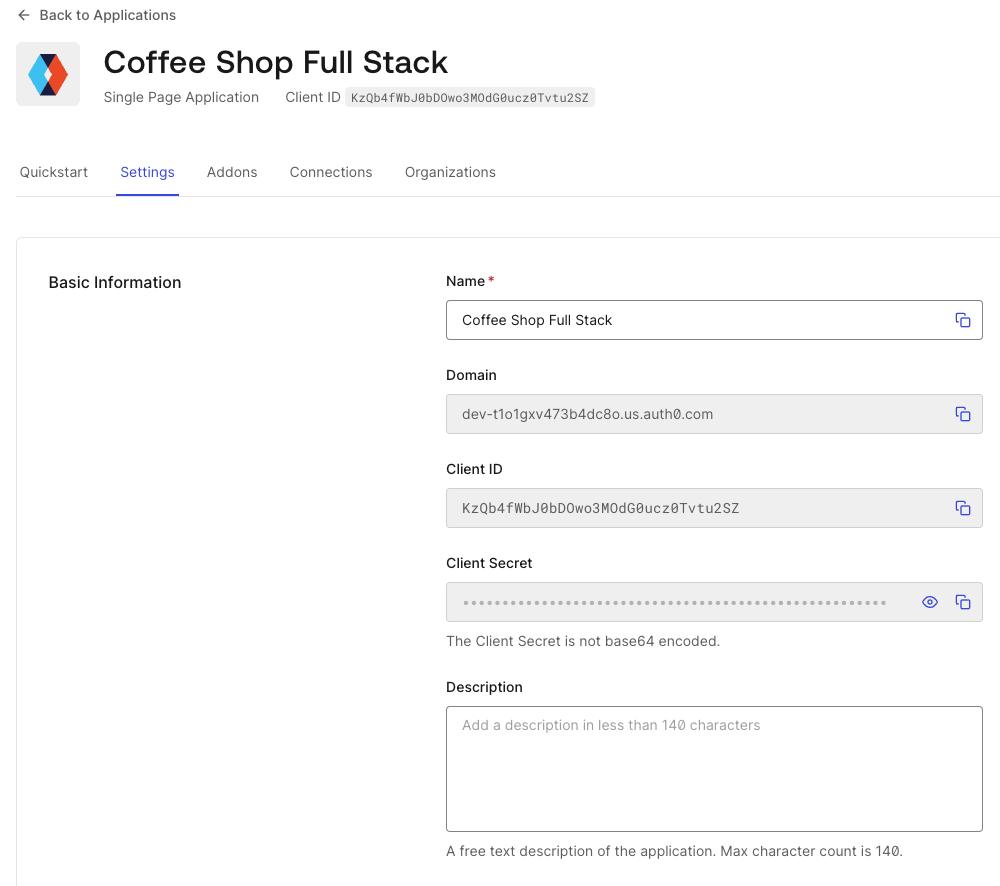

Create Auth0 Application

application

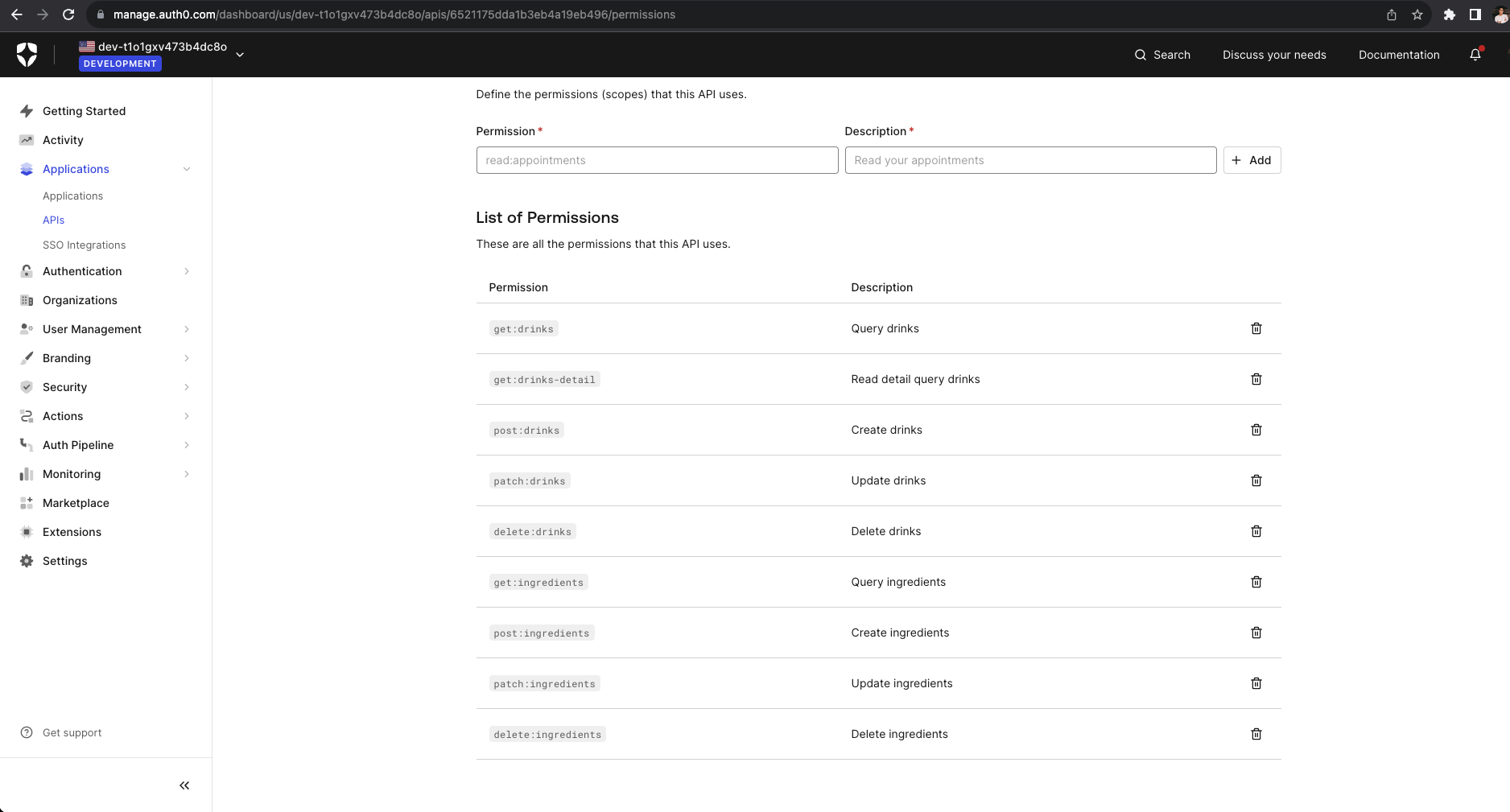

Create Auth0 API and Permissions

api_permission

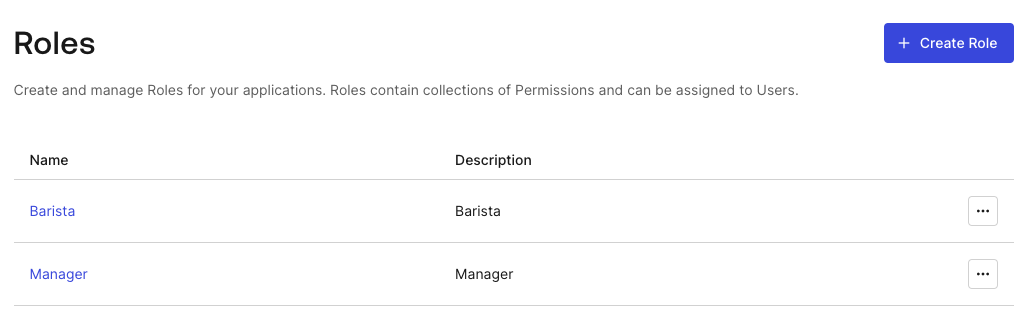

Create Auth0 Roles and Users

role

Barista: get:drinks-detail, get:drinks, get:ingredients permission_barista

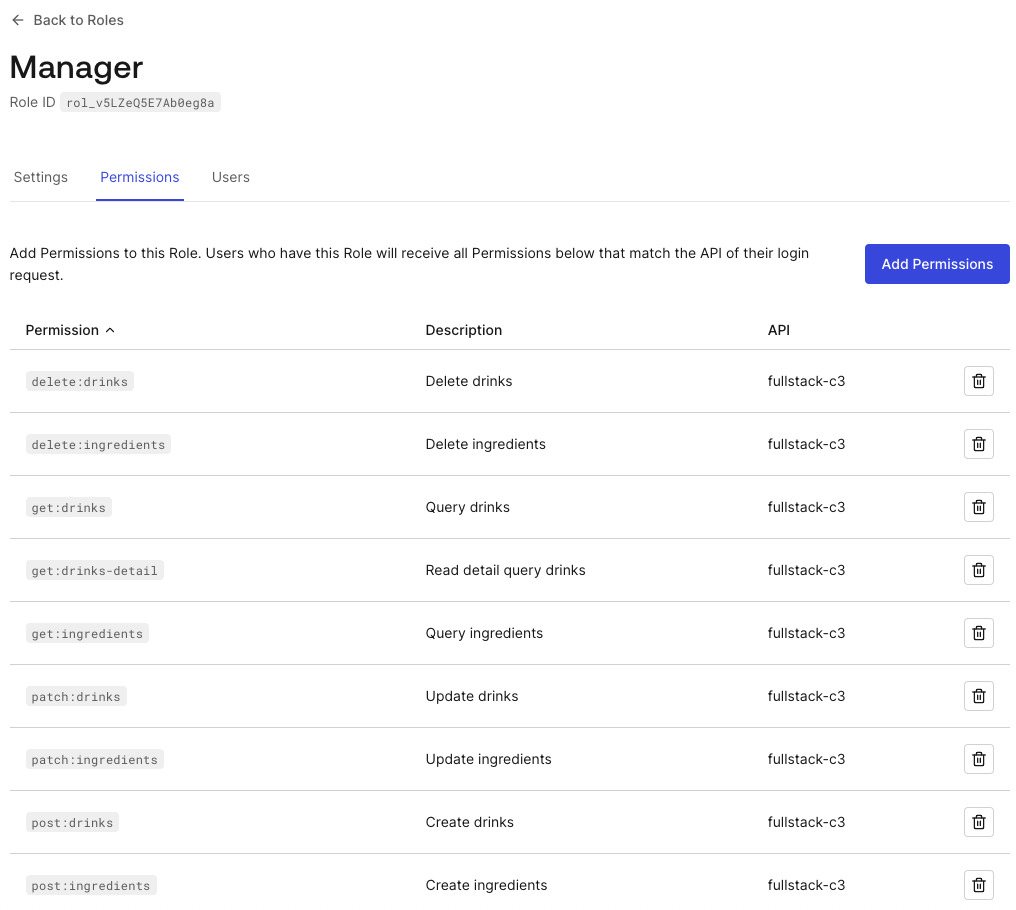

Manager: Full Access permission_manager

Backend

Install Dependencies

cd backend
pip install -r requirements.txt

Run Backend Server

python api.py

URL backend: http://localhost:5000/

Test Backend

dropdb drink_test
createdb drink_test
python test_api.py

Results:

.
----------------------------------------------------------------------
Ran 29 tests in 8.607s

Frontend

Install Dependencies

cd frontend
npm install

Run Frontend Server

ionic serve

URL frontend: http://localhost:8100/

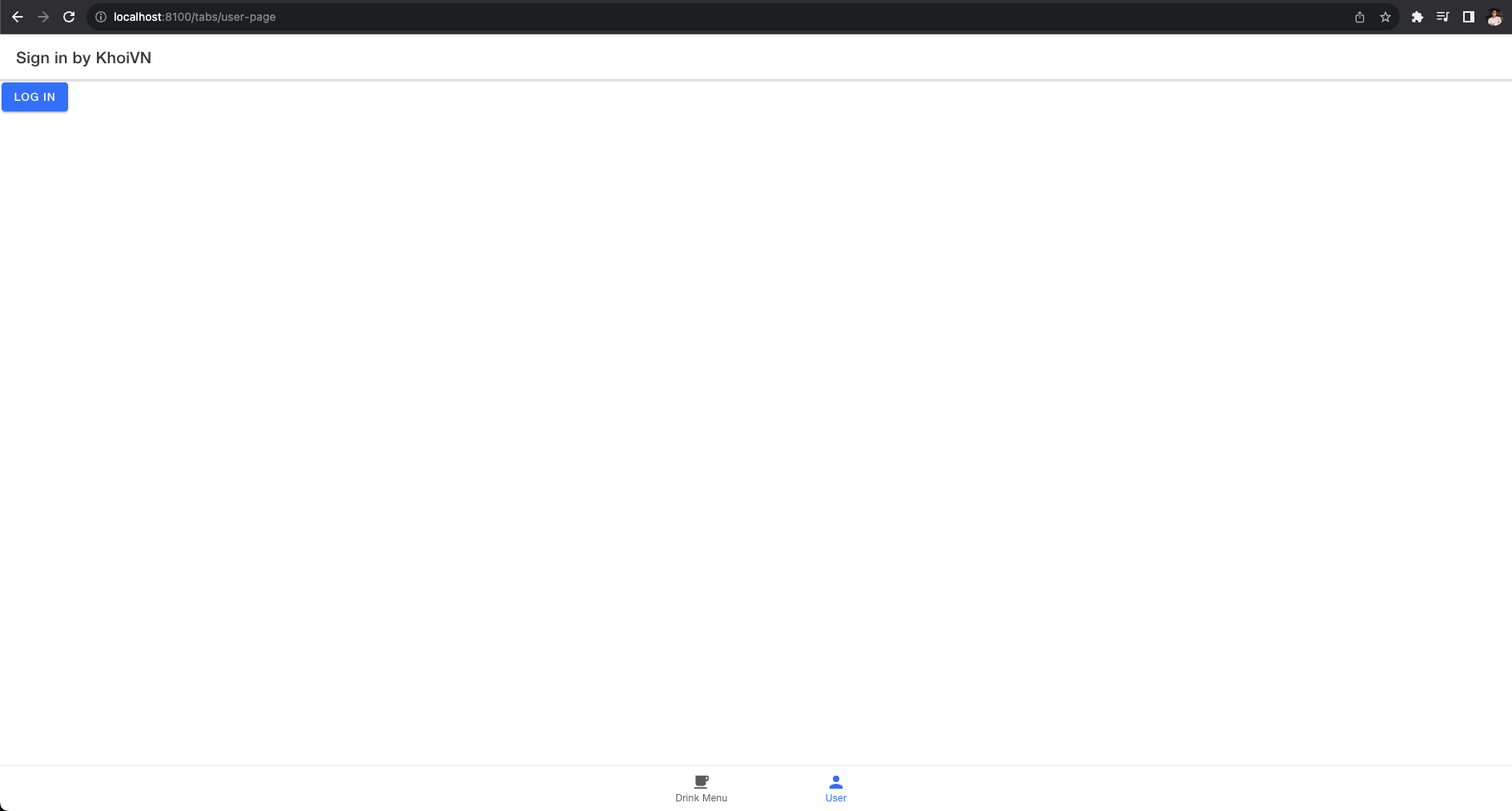

signin_page

Redirect to Auth0

auth0_page

Create Drink

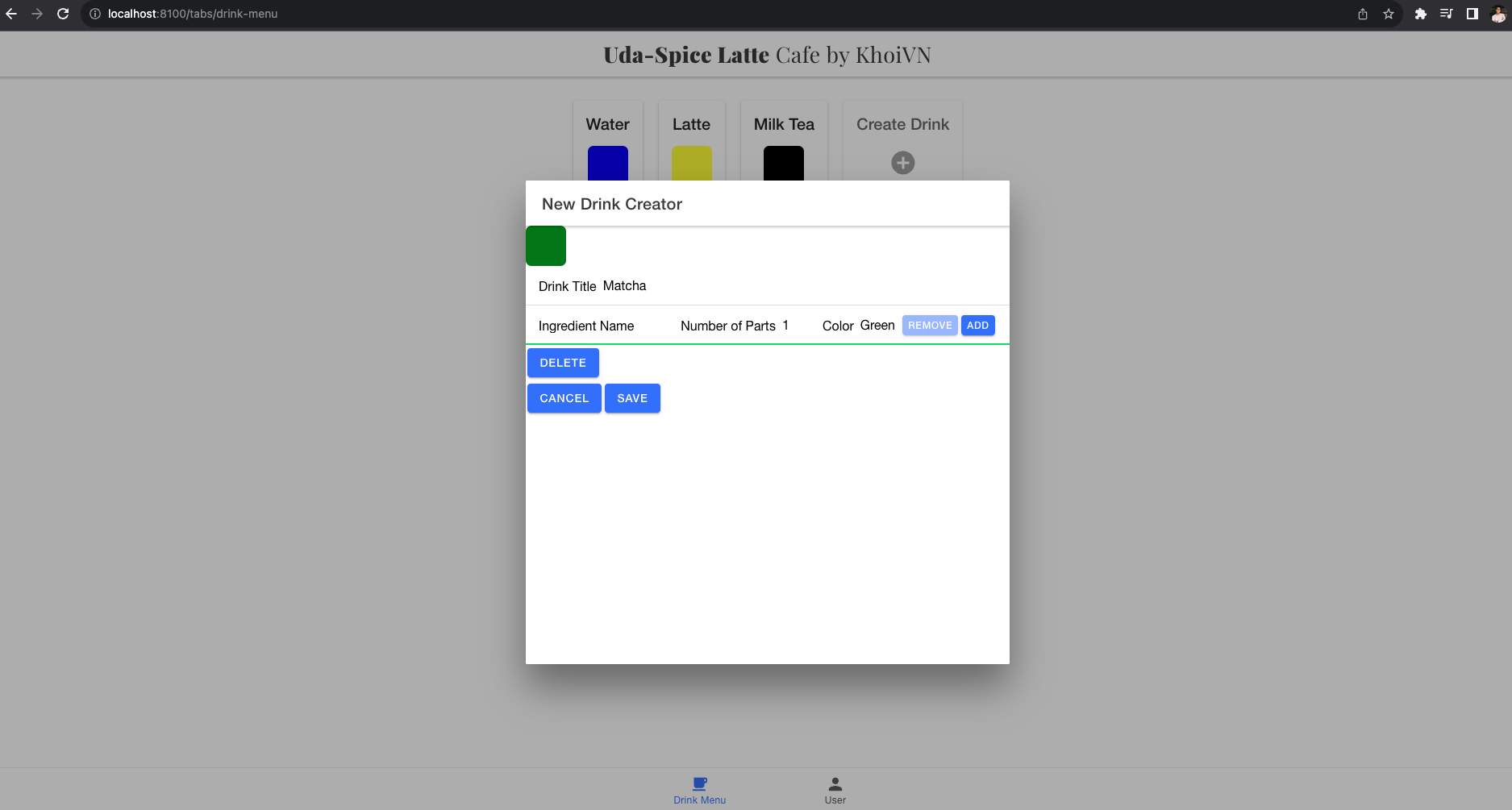

create_drink

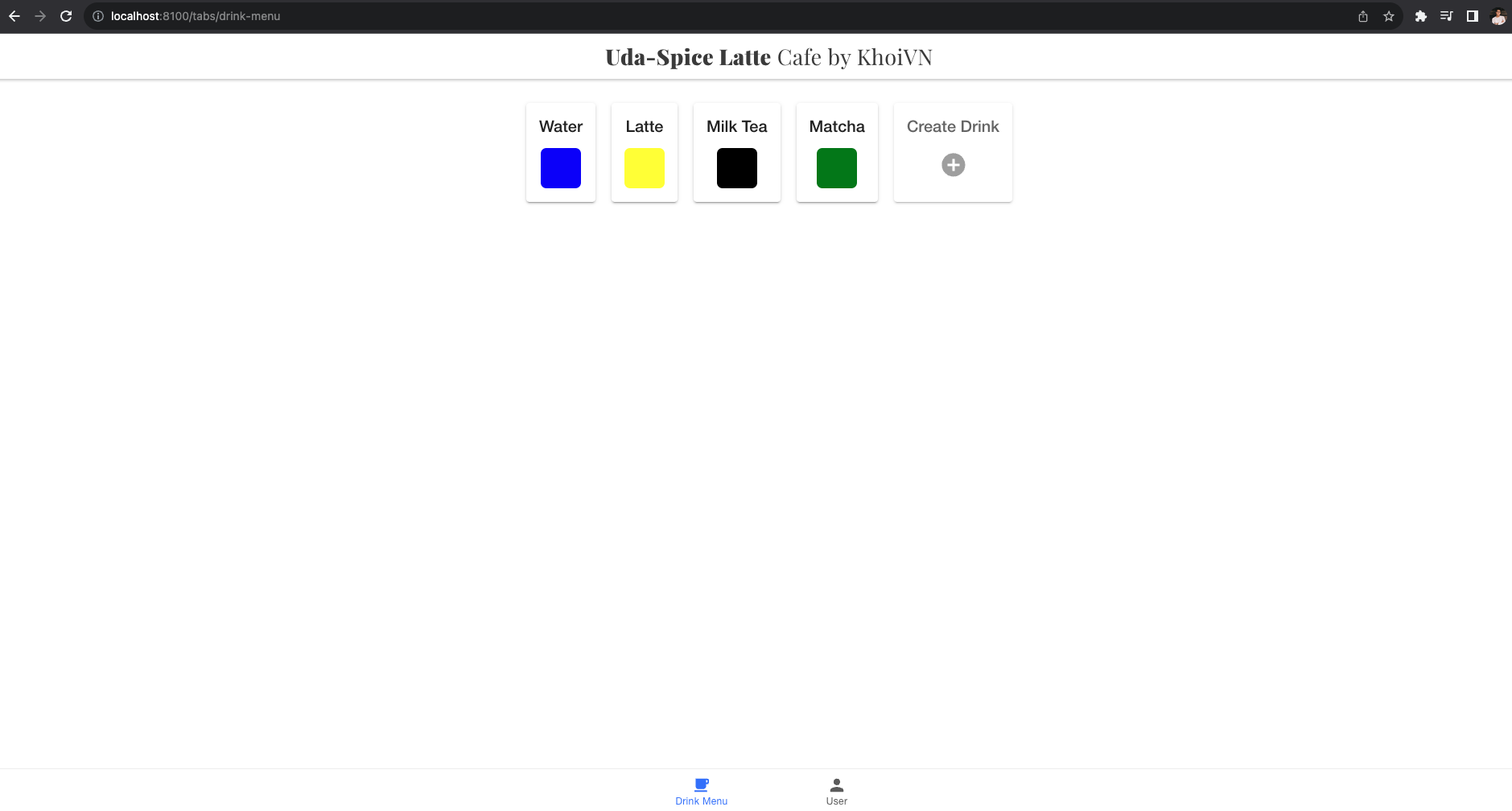

Home Page

homepage

Documentation

API Reference

URL: http://localhost:5000/

GET /drinks

Fetches a list of drinks in the database
No permission required
Request Arguments: None
Returns: An object with a single key, drinks, that contains an array of drinks objects.

{
    "drinks": [
        {
            "id": 1,
            "recipe": [
                {
                    "color": "blue",
                    "parts": 1
                }
            ],
            "title": "Water"
        },
        {
            "id": 2,
            "recipe": [
                {
                    "color": "blue",
                    "parts": 1
                },
                {
                    "color": "yellow",
                    "parts": 1
                }
            ],
            "title": "Lemonade"
        }
    ],
    "success": true
}

GET /drinks-detail

Fetches a list of drinks in the database
Permission required: get:drinks-detail
Request Arguments: None
Returns: An object with a single key, drinks, that contains an array of drinks objects.

{
    "drinks": [
        {
            "id": 1,
            "recipe": [
                {
                    "color": "blue",
                    "name": "water",
                    "parts": 1
                }
            ],
            "title": "Water"
        },
        {
            "id": 2,
            "recipe": [
                {
                    "color": "blue",
                    "name": "water",
                    "parts": 1
                },
                {
                    "color": "yellow",
                    "name": "lemon",
                    "parts": 1
                }
            ],
            "title": "Lemonade"
        }
    ],
    "success": true
}

POST /drinks

Creates a new drink in the database
Permission required: post:drinks
Request Arguments: None
Returns: An object with a single key, drinks, that contains an array of drinks objects.

{
    "drinks": [
        {
            "id": 3,
            "recipe": [
                {
                    "color": "green",
                    "name": "matcha",
                    "parts": 3
                }
            ],
            "title": "Matcha"
        }
    ],
    "success": true
}

PATCH /drinks/<id>

Updates a drink in the database
Permission required: patch:drinks
Request Arguments: None
Returns: An object with a single key, drinks, that contains an array of drinks objects.

{
    "drinks": [
        {
            "id": 3,
            "recipe": [
                {
                    "color": "green",
                    "name": "matcha",
                    "parts": 3
                }
            ],
            "title": "Matcha"
        }
    ],
    "success": true
}

DELETE /drinks/<id>

Deletes a drink in the database
Permission required: delete:drinks
Request Arguments: None
Returns: An object with a single key, drinks, that contains an array of drinks objects.

{
    "delete": 3,
    "success": true
}

GET /ingredients

Fetches a list of ingredients in the database
Permission required: get:ingredients
Request Arguments: None
Returns: An object with a single key, ingredients, that contains an array of ingredients objects.

{
    "ingredients": [
        {
            "density": "100%",
            "id": 1,
            "name": "water"
        },
        {
            "density": "60%",
            "id": 2,
            "name": "lemon"
        }
    ],
    "success": true
}

POST /ingredients

Creates a new ingredient in the database
Permission required: post:ingredients
Request Arguments: None
Returns: An object with a single key, ingredients, that contains an array of ingredients objects.

{
    "ingredients": [
        {
            "density": "80%",
            "id": 3,
            "name": "coffee"
        }
    ],
    "success": true
}

PATCH /ingredients/<id>

Updates an ingredient in the database
Permission required: patch:ingredients
Request Arguments: None
Returns: An object with a single key, ingredients, that contains an array of ingredients objects.

{
    "ingredients": [
        {
            "density": "90%",
            "id": 3,
            "name": "coffee"
        }
    ],
    "success": true
}

DELETE /ingredients/<id>

Deletes an ingredient in the database
Permission required: delete:ingredients
Request Arguments: None
Returns: An object with a single key, ingredients, that contains an array of ingredients objects.

{
    "delete": 3,
    "success": true
}

Error Handling

Errors are returned as JSON objects in the following format:

{
    "success": False,
    "error": 404,
    "message": "resource not found"
}

The API will return three error types when requests fail:

400: Bad Request
401: Unauthorized
403: Forbidden
404: Resource Not Found
422: Not Processable

Users and Roles

Public

Can view drinks and drink details

Barista

All permissions a Public user has and…
Can view drink details

Manager

All permissions a Barista has and…
Can create new drinks
Can delete drinks

Frontend

URL: http://localhost:8100/

GET /tabs/drink-menu

Home page
Public
Shows drinks

GET /tabs/user-page

Login page
Public
Redirects to Auth0

Configuration in ./src/environments/environments.ts:

export const environment = {
    production: false,
    apiServerUrl: 'http://127.0.0.1:5000',
    auth0: {
    url: 'dev-t1o1gxv473b4dc8o.us',
    audience: 'http://localhost:5000/login',
    clientId: 'KzQb4fWbJ0bDOwo3MOdG0ucz0Tvtu2SZ',
    callbackURL: 'http://localhost:8100',
    }
};

Test Postman Collection

Import Postman Collection

Open Postman
Click on Import
Click on Choose Files
Select the file ./backend/udacity-fsnd-udaspicelatte.postman_collection.json

Get JWT Tokens

Access the following link to get the JWT tokens for the users:

https://dev-t1o1gxv473b4dc8o.us.auth0.com/authorize?audience=http://localhost:5000/login&response_type=token&client_id=KzQb4fWbJ0bDOwo3MOdG0ucz0Tvtu2SZ&redirect_uri=http://localhost:8100/tabs/user-page

Then, import Bearer Tokens into Postman.

Test Endpoints

Click on the arrow next to the collection name to expand the collection
Choose folder public, barista, or manager and run tests on the endpoints

Results:

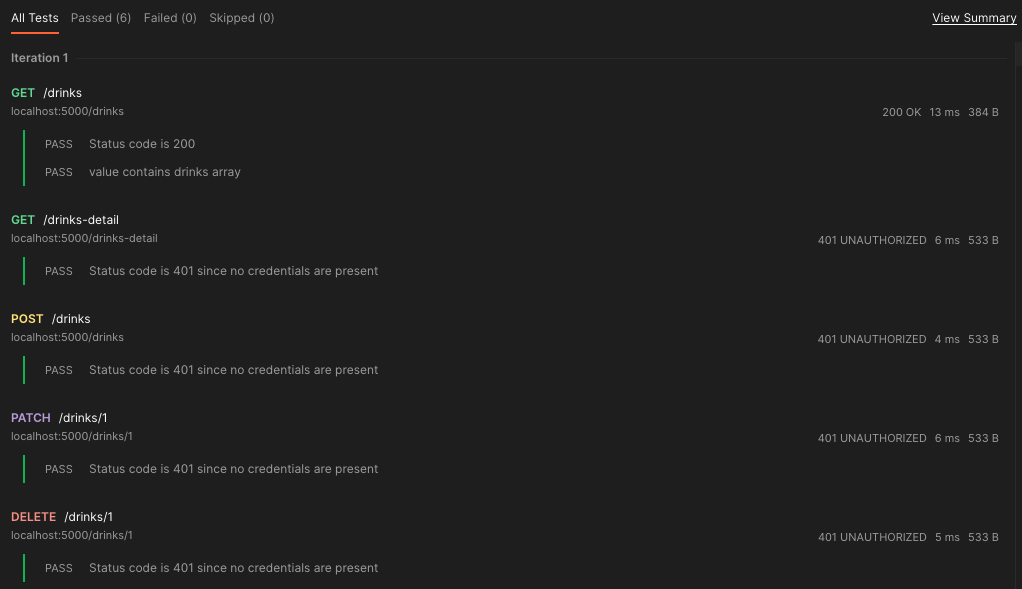

All tests should pass for public folder

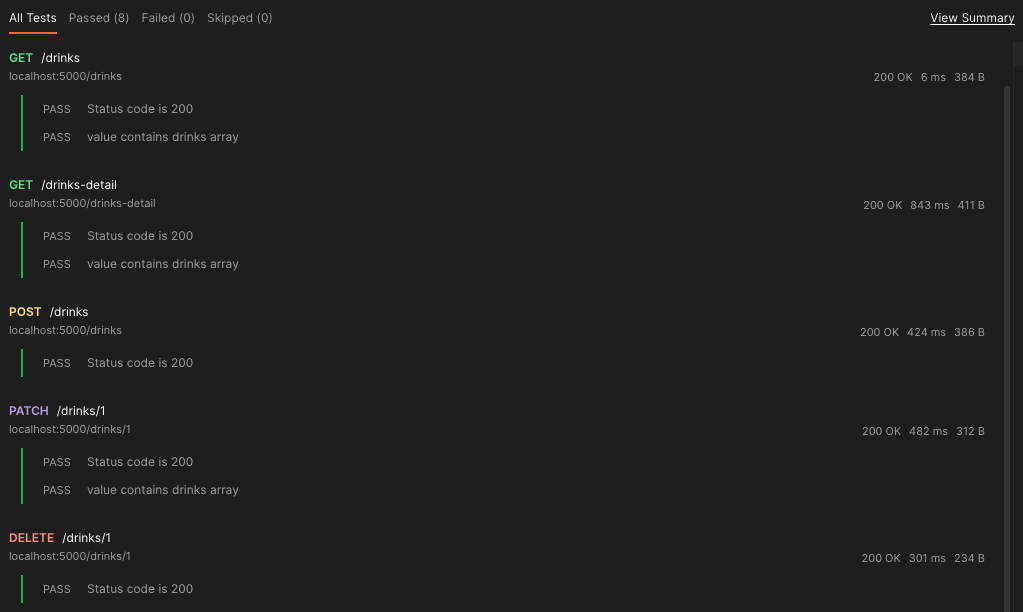

All tests should pass for barista folder

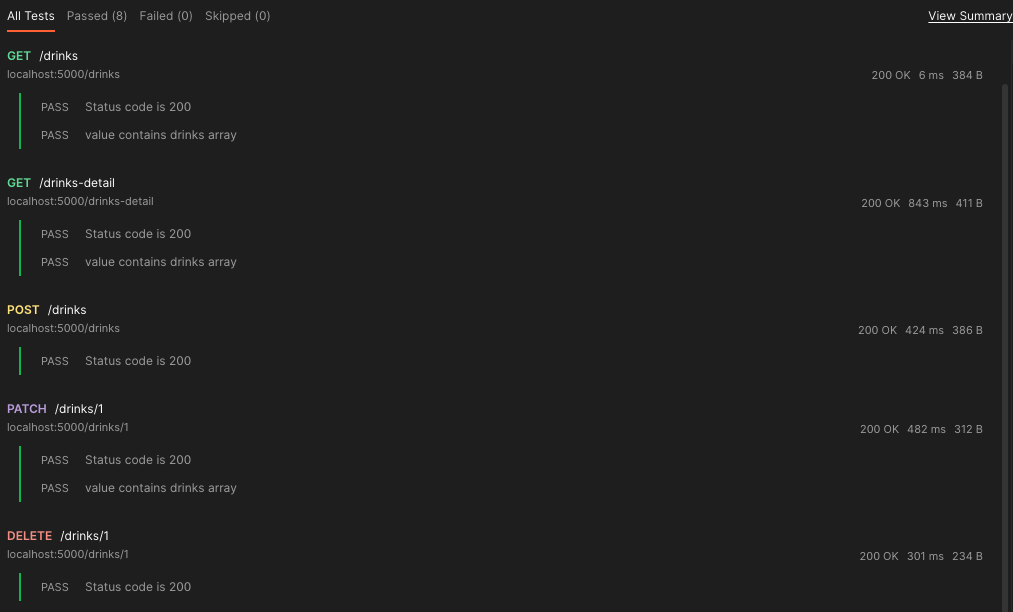

All tests should pass for manager folder

Export the collection overwriting the ./backend/udacity-fsnd-udaspicelatte.postman_collection.json file.

Deployment

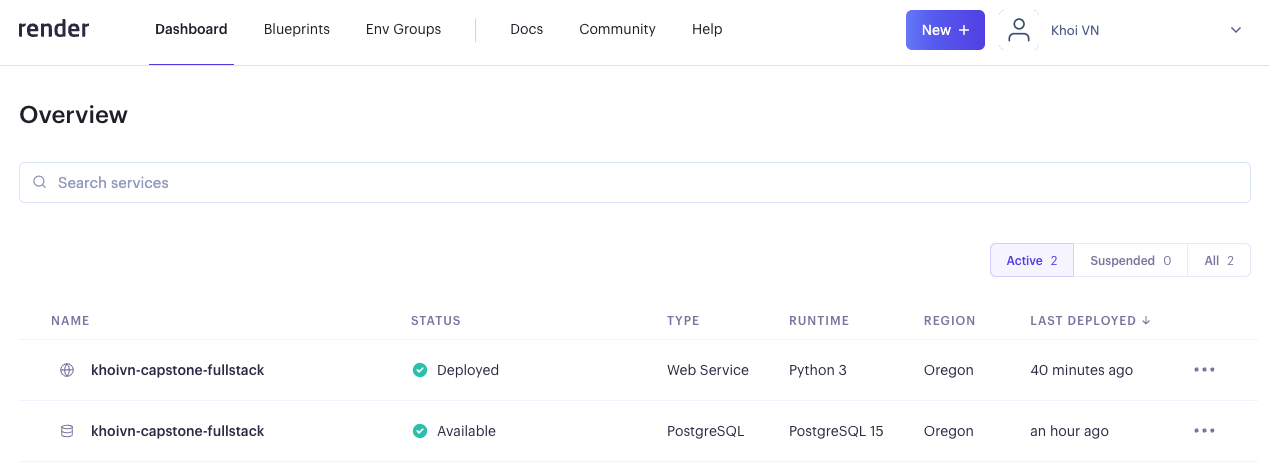

render_services

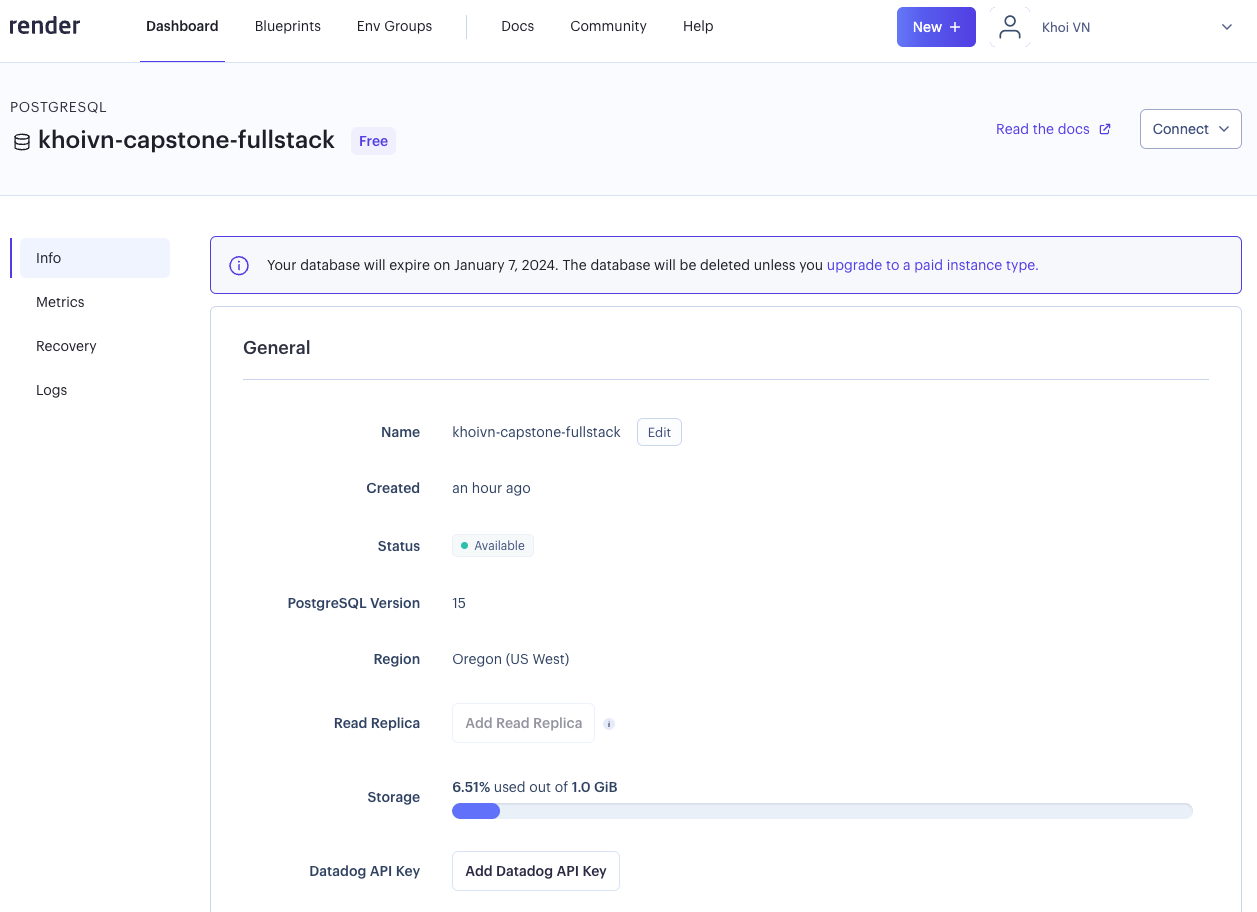

Postgres Database

render_postgres

Endpoint: postgres://macos:Lvqb6jAbNSlbpFbsRkYPpcTeS0tHvR2U@dpg-cki2moke1qns73dbmfa0-a/drink_41ri

Server

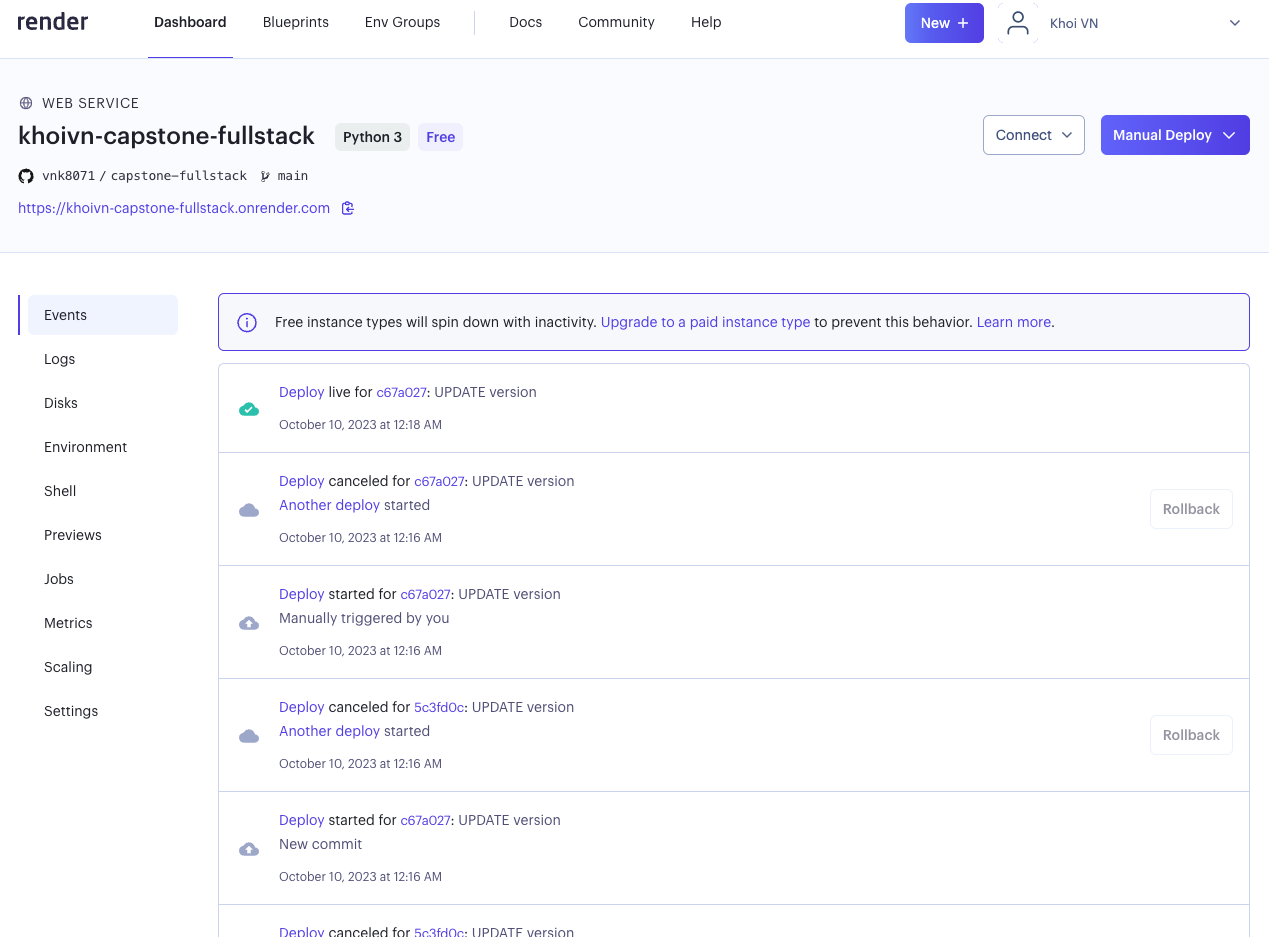

render_server

Endpoint Render: https://khoivn-capstone-fullstack.onrender.com/

Token manager: Bearer eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCIsImtpZCI6IkNPUU5pMmNQbHFkSk1BajFjczhaNCJ9.eyJpc3MiOiJodHRwczovL2Rldi10MW8xZ3h2NDczYjRkYzhvLnVzLmF1dGgwLmNvbS8iLCJzdWIiOiJnb29nbGUtb2F1dGgyfDExMzMxNDg5MTg4MDQwNjU0ODA3OSIsImF1ZCI6Imh0dHA6Ly9sb2NhbGhvc3Q6NTAwMC9sb2dpbiIsImlhdCI6MTY5Njg3MjA0MiwiZXhwIjoxNjk3ODc5MjQyLCJhenAiOiJLelFiNGZXYkowYkRPd28zTU9kRzB1Y3owVHZ0dTJTWiIsInNjb3BlIjoiIiwicGVybWlzc2lvbnMiOlsiZGVsZXRlOmRyaW5rcyIsImRlbGV0ZTppbmdyZWRpZW50cyIsImdldDpkcmlua3MiLCJnZXQ6ZHJpbmtzLWRldGFpbCIsImdldDppbmdyZWRpZW50cyIsInBhdGNoOmRyaW5rcyIsInBhdGNoOmluZ3JlZGllbnRzIiwicG9zdDpkcmlua3MiLCJwb3N0OmluZ3JlZGllbnRzIl19.ZzBWYYUJ88BX7or6Miu0GuUmNawjxyTBEHhP19N_nnkoOx6lWNmxKYC6HmxZWqrExRPyUHEKzSJtRsGm36V6BJKXK3CiUOzJ-zSTuAN2bn-CwQFqHLLLuF7JDQPkE8Jd3NPD_fkE98bPxFpI7kEif0tOw46TZaCJ4MZqfAiP82Je5C8tnqmwaktqC_34HMrdVgU80gHR5geAeccZdVLGKHTZgaoRp_6G5rhbmseb-UY6rVWXgNmOxarHU7-4IREXRRZ7Is-FJM9f07-031CLYIWX_NEAh7pMkCgZsVXa-9Qcfgf8pN-V212j9e1MLeuHFvQ5y7Ke9OG-kmZfkHJGwQ

request_manager

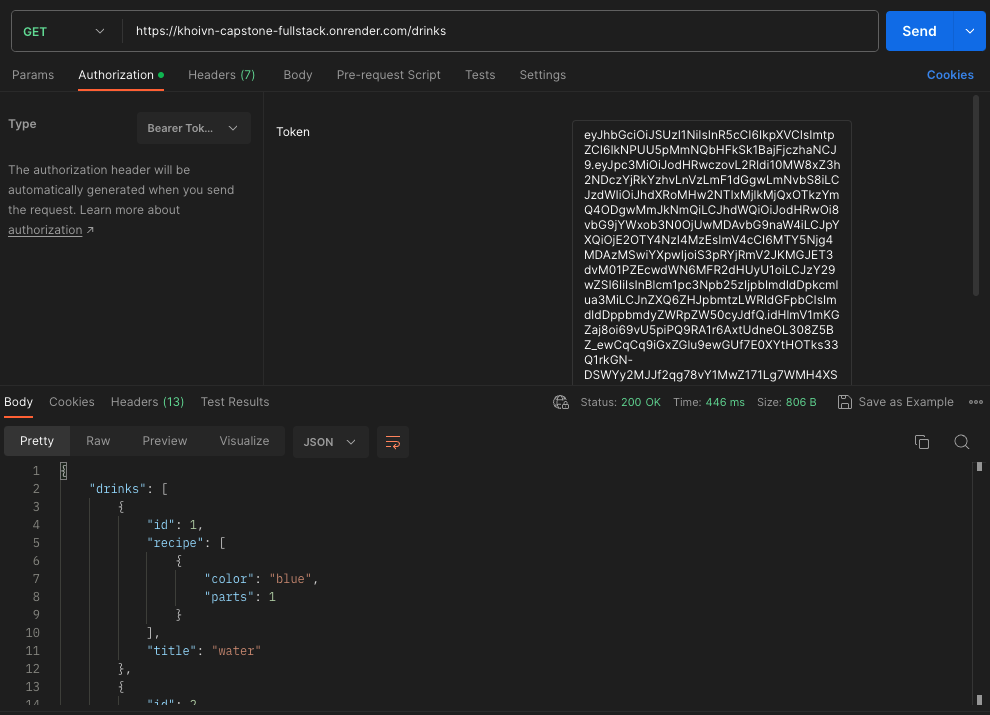

TOKEN barista: Bearer eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCIsImtpZCI6IkNPUU5pMmNQbHFkSk1BajFjczhaNCJ9.eyJpc3MiOiJodHRwczovL2Rldi10MW8xZ3h2NDczYjRkYzhvLnVzLmF1dGgwLmNvbS8iLCJzdWIiOiJhdXRoMHw2NTIxMjlkMjQxOTkzYmQ4ODgwMmJkNmQiLCJhdWQiOiJodHRwOi8vbG9jYWxob3N0OjUwMDAvbG9naW4iLCJpYXQiOjE2OTY4NjAzMTcsImV4cCI6MTg5Njg5NzUxNywiYXpwIjoiS3pRYjRmV2JKMGJET3dvM01PZEcwdWN6MFR2dHUyU1oiLCJzY29wZSI6IiIsInBlcm1pc3Npb25zIjpbImdldDpkcmlua3MiLCJnZXQ6ZHJpbmtzLWRldGFpbCIsImdldDppbmdyZWRpZW50cyJdfQ.aULs60rKj97d1kzPkx6CFWdAjhhF7kYC-fNCm7zOUECFg_blYQBN89hWvIyyTB8hDVFn_uV0fO4RzHB87TKlEBkdve3otK1CSDOEuRril7vzlyU_sGHBnD-MgQocvttunYOLxSKZhEhOsn0AZ0jlIzoK1azLI3lb5oaRNCl5VCNV10qv1HEOMRQXFJSQKf-alZwlsa1J-Q8QpO06fvWAAfmKIPU4u3zkDj6hzNEiuSXga-0BVfM5MaVKKnwMi4v8mK-Cud4xn0Vn3XUBsqlIRLmAZGts8d9uexWufqzeBHFSWJr6YwIARKMv48pSdOaNBT3v7LxIkg_8cL0VNWbE4g

request_barista

If the token is expired, please access the following link to get the new token:

https://dev-t1o1gxv473b4dc8o.us.auth0.com/authorize?audience=http://localhost:5000/login&response_type=token&client_id=KzQb4fWbJ0bDOwo3MOdG0ucz0Tvtu2SZ&redirect_uri=http://localhost:8100/tabs/user-page

Account manager:

Email: manager@gmail.com
Password: Manager8071

Account barista:

Email: barista@gmail.com
Password: Barista8071

Return URL with bearer token:

http://localhost:8100/tabs/user-page#access_token=eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCIsImtpZCI6IkNPUU5pMmNQbHFkSk1BajFjczhaNCJ9.eyJpc3MiOiJodHRwczovL2Rldi10MW8xZ3h2NDczYjRkYzhvLnVzLmF1dGgwLmNvbS8iLCJzdWIiOiJnb29nbGUtb2F1dGgyfDExMzMxNDg5MTg4MDQwNjU0ODA3OSIsImF1ZCI6Imh0dHA6Ly9sb2NhbGhvc3Q6NTAwMC9sb2dpbiIsImlhdCI6MTY5Njg3NDc2NiwiZXhwIjoxNjk2ODgxOTY2LCJhenAiOiJLelFiNGZXYkowYkRPd28zTU9kRzB1Y3owVHZ0dTJTWiIsInNjb3BlIjoiIiwicGVybWlzc2lvbnMiOlsiZGVsZXRlOmRyaW5rcyIsImRlbGV0ZTppbmdyZWRpZW50cyIsImdldDpkcmlua3MiLCJnZXQ6ZHJpbmtzLWRldGFpbCIsImdldDppbmdyZWRpZW50cyIsInBhdGNoOmRyaW5rcyIsInBhdGNoOmluZ3JlZGllbnRzIiwicG9zdDpkcmlua3MiLCJwb3N0OmluZ3JlZGllbnRzIl19.pXe2HFDF4rUdyW564ssLavlG18UNWR70x-yGgHsBqfzzy1MoUWYzo1dQiSKiPumBpG4uv9TCN8rwWJLBofYDkV9UwV6bxM7gzAoWbsbEeqGw43nLMtlBvy5WS0fT1tHHNvaRKO9Swa0ZCHxYflXLOEEyTUx4IAaafT8tgptEnX1a3mUuADN5j6mla6Yk_BrqKPSAJTXVfYR3StgPCp3AucICMAQkTcVOuh-HyD0fYWje7AViRwghRqQAKnjdFcfLGGnY-MjttSbgnDefPoBpJbLfuBRQiFHzvGsHk_NUqEyXny97Kg-Nr-Pqlq9-h2E9Pyvi4qP7cU9J5rogz83IZA&expires_in=7200&token_type=Bearer

Log Server

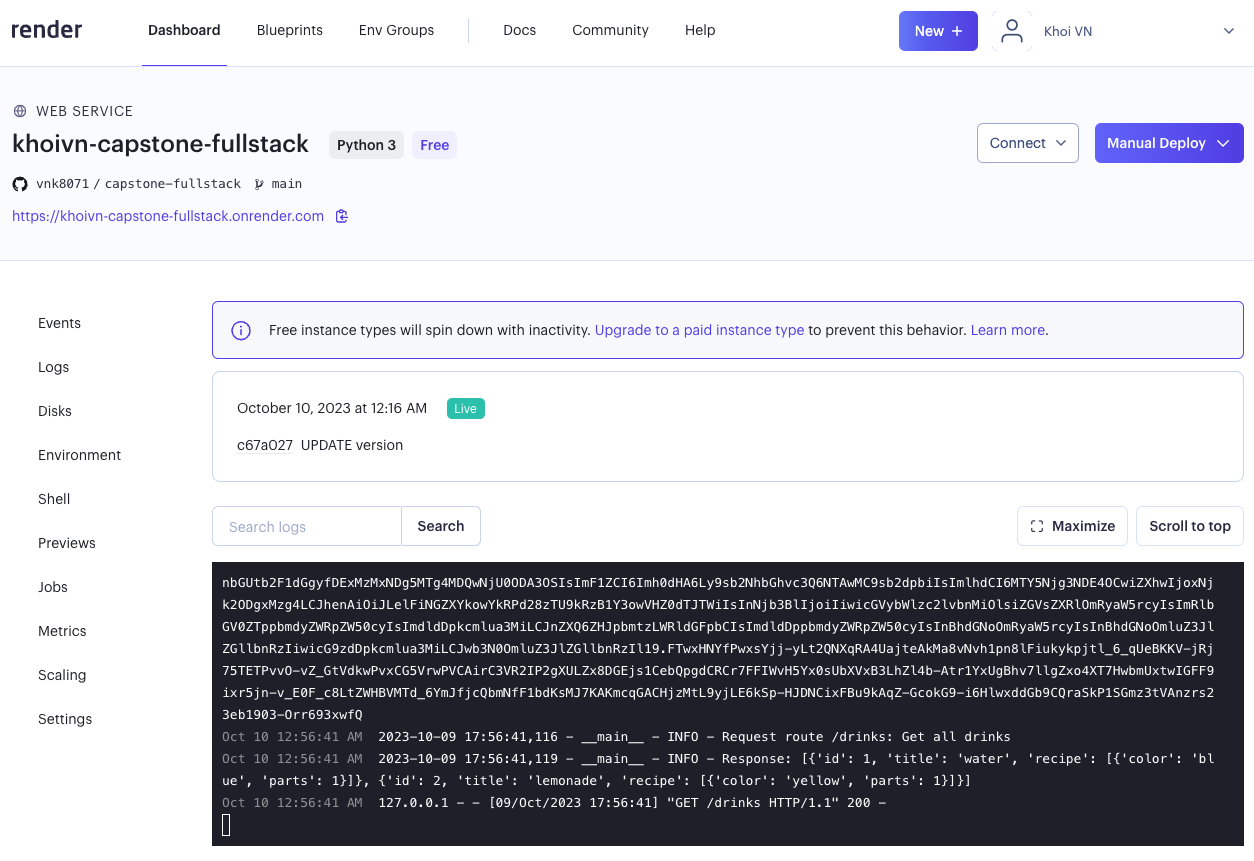

log_server

Containerization

Build Docker Image

docker build -t capstone-fullstack .

Run Docker Container

docker run -p 5000:5000 capstone-fullstack

Kubernetes on AWS

Follow the instructions in the repository vnk8071/pipeline-deploy-kubernetes-on-aws to deploy the application on AWS.
