Coffee Shop Full Stack

Source code: vnk8071/identity_access_management

Full Stack Nano - IAM Final Project​

Udacity has decided to open a new digitally enabled cafe for students to order drinks, socialize, and study hard. But they need help setting up their menu experience.

You have been called on to demonstrate your newly learned skills to create a full stack drink menu application. The application must:

  1. Display graphics representing the ratios of ingredients in each drink.
  2. Allow public users to view drink names and graphics.
  3. Allow the shop baristas to see the recipe information.
  4. Allow the shop managers to create new drinks and edit existing drinks.

Auth0 Setup​

Create Auth0 Application​

application

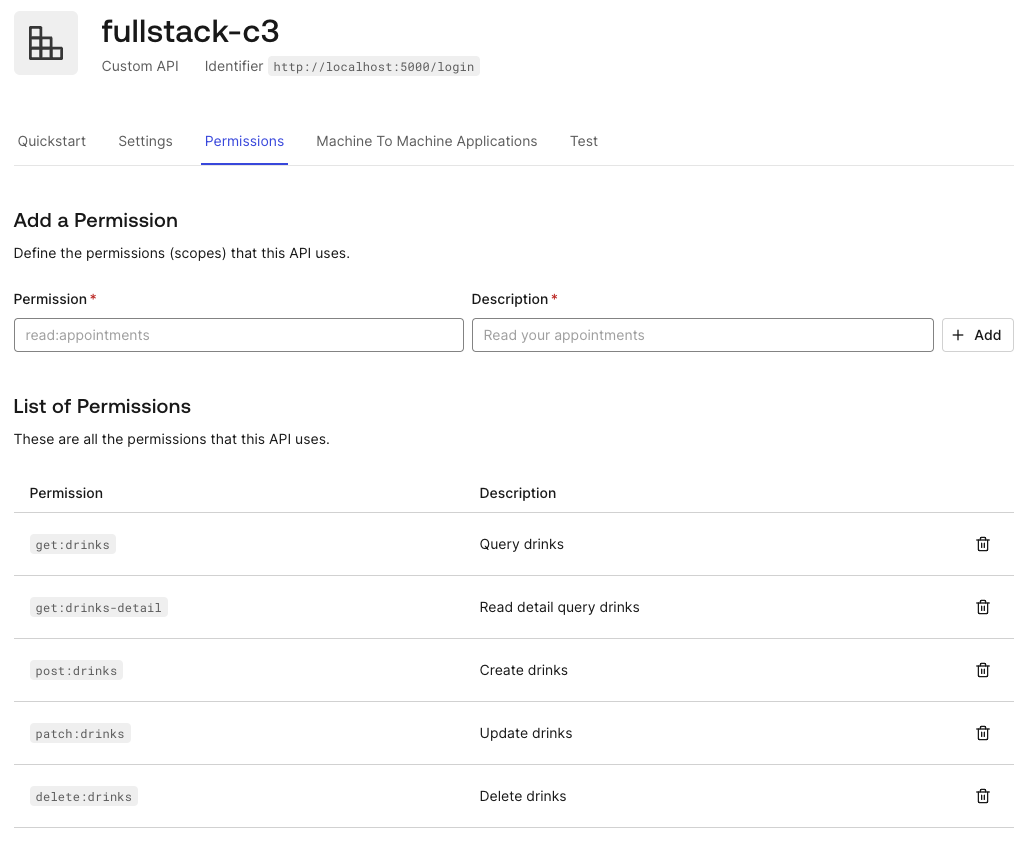

Create Auth0 API and Permissions​

api_permission

Create Auth0 Roles and Users​

role

Backend​

Install Dependencies​

cd backend
pip install -r requirements.txt

Run Backend Server​

FLASK_APP=api FLASK_DEBUG=true flask run

URL backend: http://localhost:5000/

Frontend​

Install Dependencies​

cd frontend
npm install

Run Frontend Server​

ionic serve

URL frontend: http://localhost:8100/

Sign In Page​

signin_page

Redirect to Auth0​

auth0_page

Create Drink​

create_drink

Home Page​

homepage

Documentation​

API Reference​

URL: http://localhost:5000/

GET /drinks

  • Fetches a list of drinks in the database
  • No permission required
  • Request Arguments: None
  • Returns: An object with a single key, drinks, that contains an array of drinks objects.
{
    "drinks": [
        {
            "id": 1,
            "recipe": [
                {
                    "color": "blue",
                    "parts": 1
                }
            ],
            "title": "Water"
        },
        {
            "id": 2,
            "recipe": [
                {
                    "color": "blue",
                    "parts": 1
                },
                {
                    "color": "yellow",
                    "parts": 1
                }
            ],
            "title": "Lemonade"
        }
    ],
    "success": true
}

GET /drinks-detail

  • Fetches a list of drinks in the database
  • Permission required: get:drinks-detail
  • Request Arguments: None
  • Returns: An object with a single key, drinks, that contains an array of drinks objects.
{
    "drinks": [
        {
            "id": 1,
            "recipe": [
                {
                    "color": "blue",
                    "name": "water",
                    "parts": 1
                }
            ],
            "title": "Water"
        },
        {
            "id": 2,
            "recipe": [
                {
                    "color": "blue",
                    "name": "water",
                    "parts": 1
                },
                {
                    "color": "yellow",
                    "name": "lemon",
                    "parts": 1
                }
            ],
            "title": "Lemonade"
        }
    ],
    "success": true
}

POST /drinks

  • Creates a new drink in the database
  • Permission required: post:drinks
  • Request Arguments: None
  • Returns: An object with a single key, drinks, that contains an array of drinks objects.
{
    "drinks": [
        {
            "id": 3,
            "recipe": [
                {
                    "color": "green",
                    "name": "matcha",
                    "parts": 3
                }
            ],
            "title": "Matcha"
        }
    ],
    "success": true
}

PATCH /drinks/<id>

  • Updates a drink in the database
  • Permission required: patch:drinks
  • Request Arguments: None
  • Returns: An object with a single key, drinks, that contains an array of drinks objects.
{
    "drinks": [
        {
            "id": 3,
            "recipe": [
                {
                    "color": "green",
                    "name": "matcha",
                    "parts": 3
                }
            ],
            "title": "Matcha"
        }
    ],
    "success": true
}

DELETE /drinks/<id>

  • Deletes a drink in the database
  • Permission required: delete:drinks
  • Request Arguments: None
  • Returns: An object with a single key, drinks, that contains an array of drinks objects.
{
    "delete": 3,
    "success": true
}

Error Handling​

Errors are returned as JSON objects in the following format:

{
    "success": False,
    "error": 404,
    "message": "resource not found"
}

The API will return three error types when requests fail:

  • 400: Bad Request
  • 401: Unauthorized
  • 403: Forbidden
  • 404: Resource Not Found
  • 422: Not Processable

Users and Roles​

Public

  • Can view drinks and drink details

Barista

  • All permissions a Public user has and…
  • Can view drink details

Manager

  • All permissions a Barista has and…
  • Can create new drinks
  • Can delete drinks

Frontend​

URL: http://localhost:8100/

GET /tabs/drink-menu

  • Home page
  • Public
  • Shows drinks

GET /tabs/user-page

  • Login page
  • Public
  • Redirects to Auth0

Configuration in ./src/environments/environments.ts:

export const environment = {
    production: false,
    apiServerUrl: 'http://127.0.0.1:5000',
    auth0: {
    url: 'dev-t1o1gxv473b4dc8o.us',
    audience: 'http://localhost:5000/login',
    clientId: 'KzQb4fWbJ0bDOwo3MOdG0ucz0Tvtu2SZ',
    callbackURL: 'http://localhost:8100',
    }
};

Test Postman Collection​

Import Postman Collection​

  1. Open Postman
  2. Click on Import
  3. Click on Choose Files
  4. Select the file ./backend/udacity-fsnd-udaspicelatte.postman_collection.json

Get JWT Tokens​

Access the following link to get the JWT tokens for the users:

https://dev-t1o1gxv473b4dc8o.us.auth0.com/authorize?audience=http://localhost:5000/login&response_type=token&client_id=KzQb4fWbJ0bDOwo3MOdG0ucz0Tvtu2SZ&redirect_uri=http://localhost:8100/tabs/user-page

Then, import Bearer Tokens into Postman.

Test Endpoints​

  1. Click on the arrow next to the collection name to expand the collection
  2. Choose folder public, barista, or manager and run tests on the endpoints

Results:

  • All tests should pass for public folder test_public
  • All tests should pass for barista folder test_barista
  • All tests should pass for manager folder test_manager

Export the collection overwriting the ./backend/udacity-fsnd-udaspicelatte.postman_collection.json file.
