Fyyur

Source code: vnk8071/sql_data_modeling_for_web

Introduction​

Fyyur is a musical venue and artist booking site that facilitates the discovery and bookings of shows between local performing artists and venues. This site lets you list new artists and venues, discover them, and list shows with artists as a venue owner.

Overview​

This app is nearly complete. It is only missing one thing… real data! While the views and controllers are defined in this application, it is missing models and model interactions to be able to store retrieve, and update data from a database. By the end of this project, you should have a fully functioning site that is at least capable of doing the following, if not more, using a PostgreSQL database:

  • creating new venues, artists, and creating new shows.
  • searching for venues and artists.
  • learning more about a specific artist or venue.

Installation​

pip install -r requirements.txt

Run Application​

FLASK_APP=app FLASK_ENV=development flask run

Result:

11:17:41
 * Serving Flask app 'app'
 * Debug mode: off
WARNING: This is a development server. Do not use it in a production deployment. Use a production WSGI server instead.
 * Running on http://127.0.0.1:5000
Press CTRL+C to quit

Home Page​

Route: 'localhost:5000/'

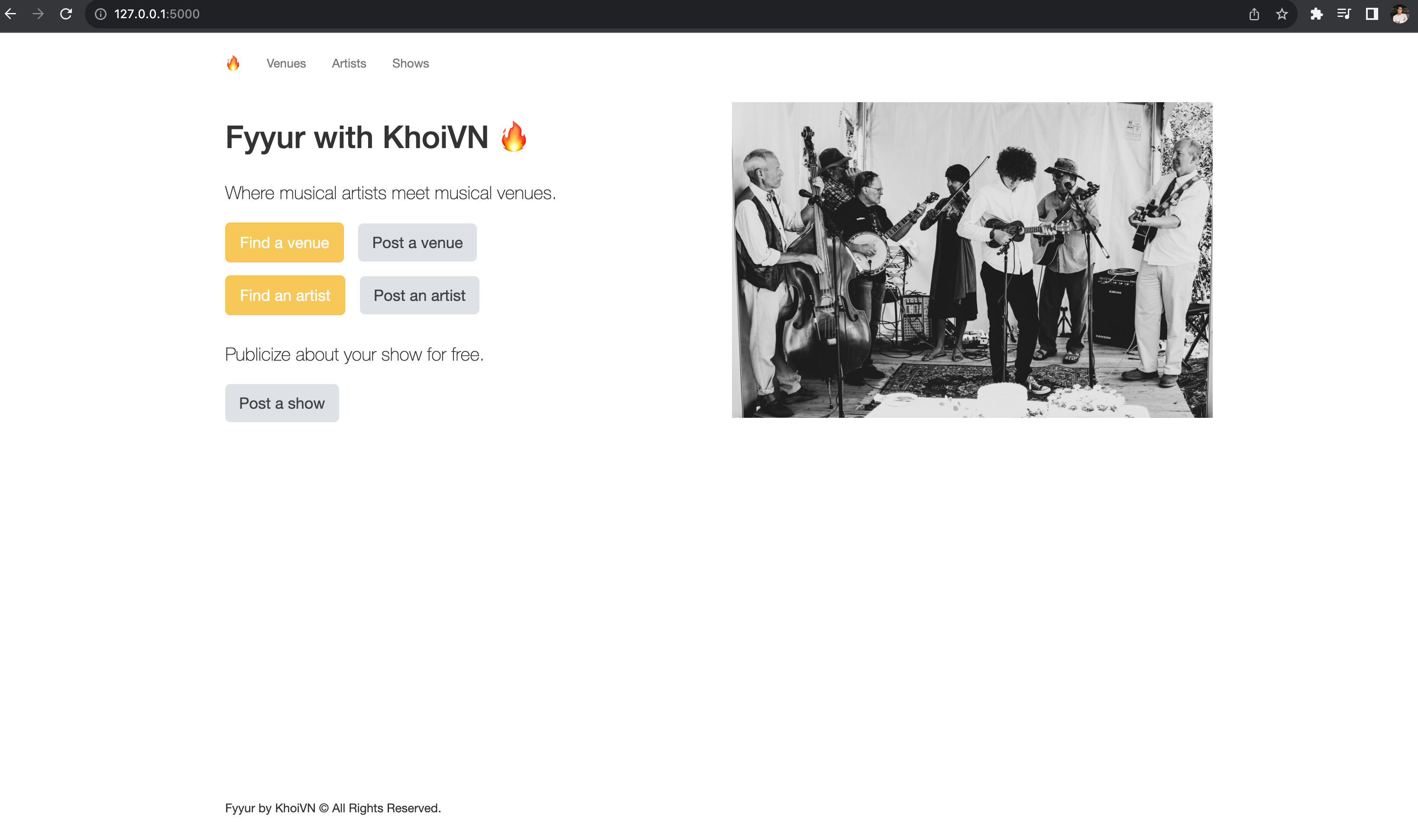

home

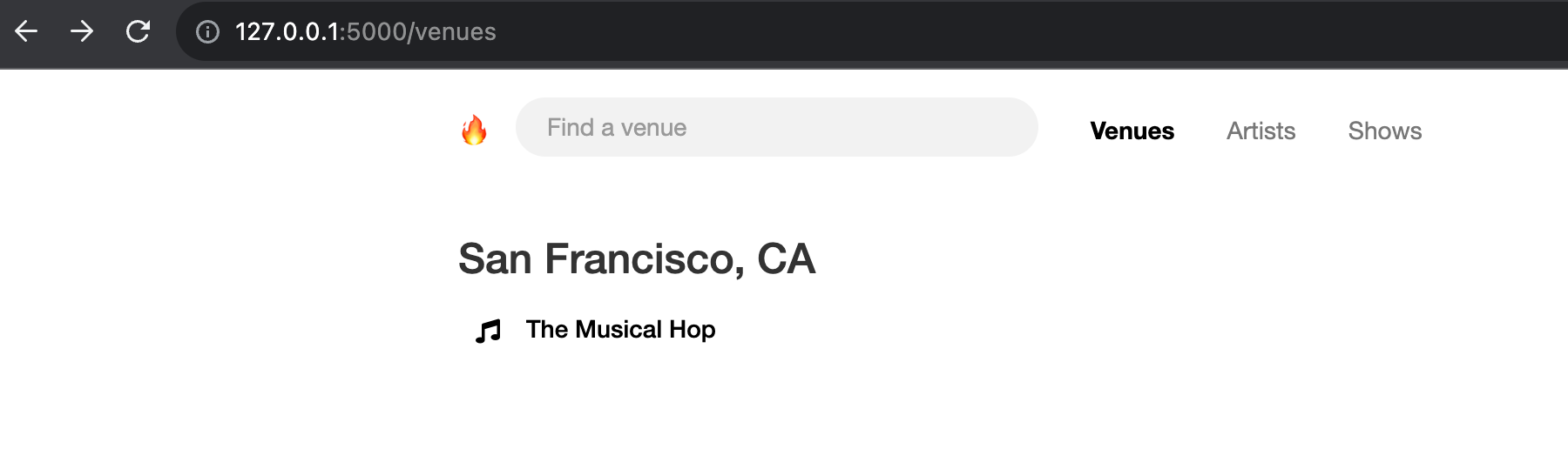

Venues Page​

venue_page

Insert Data​

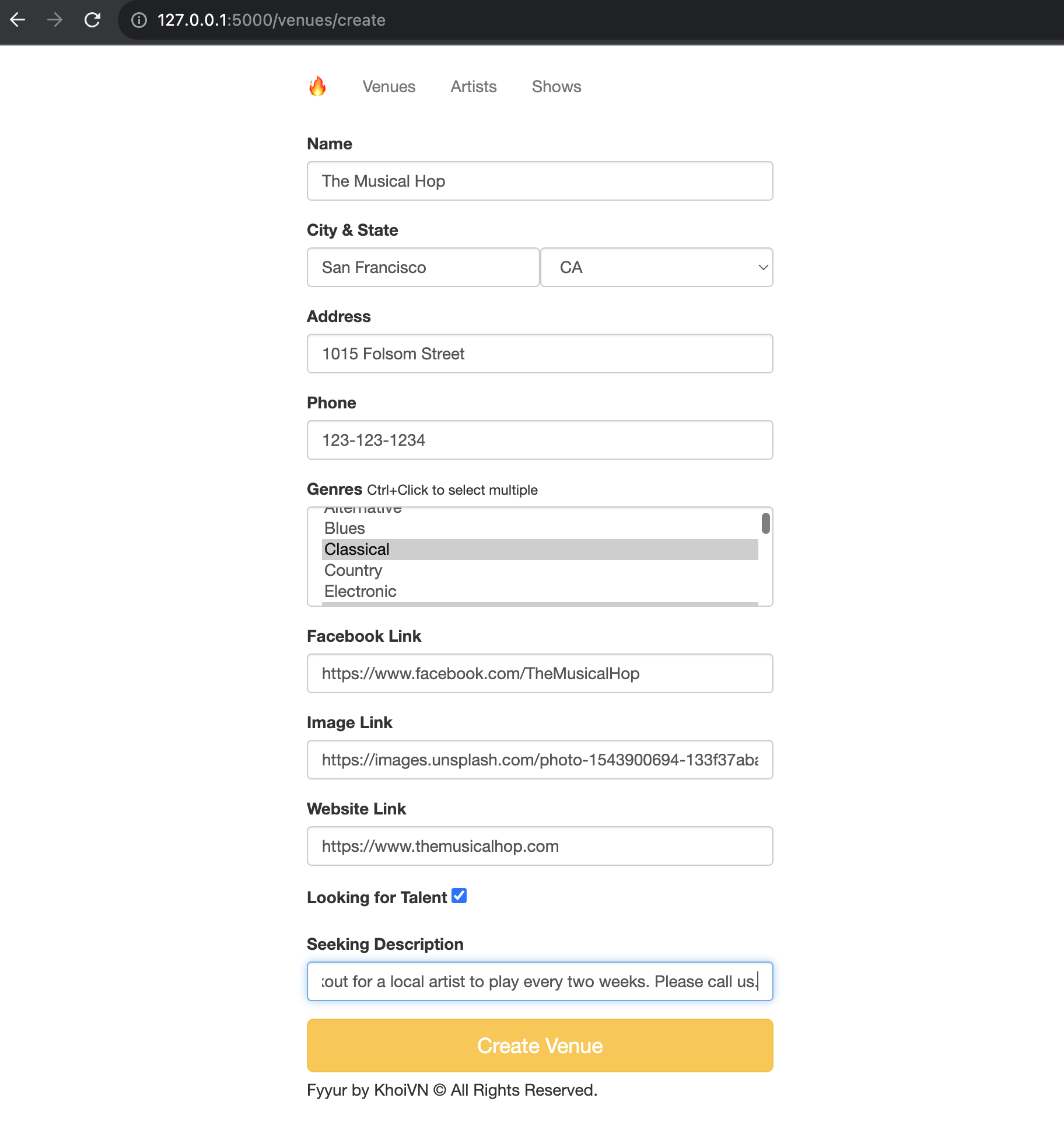

post_venue

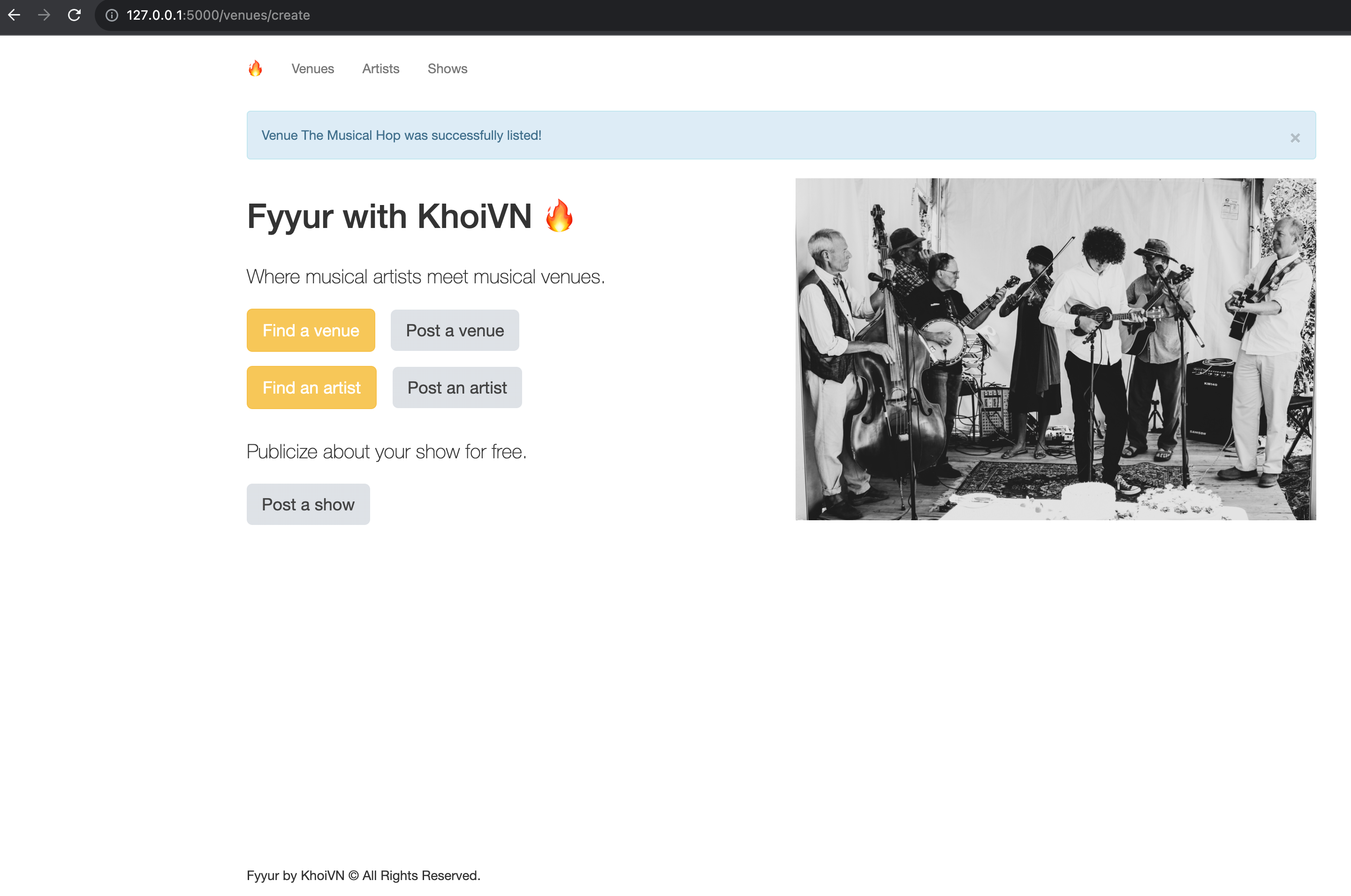

Then, insert successfully: post_venue_success

Edit Data​

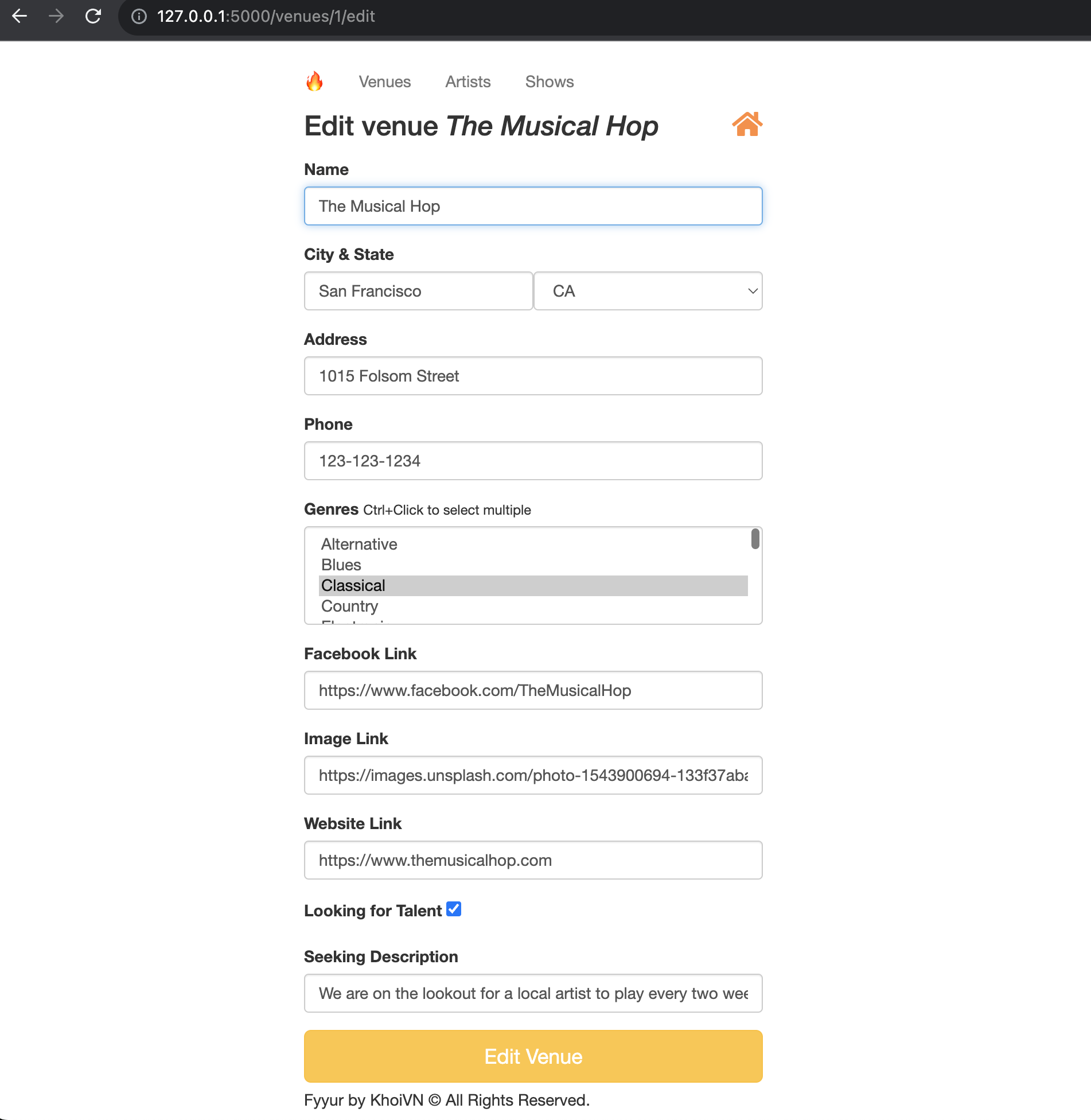

venue_edit

Search Data​

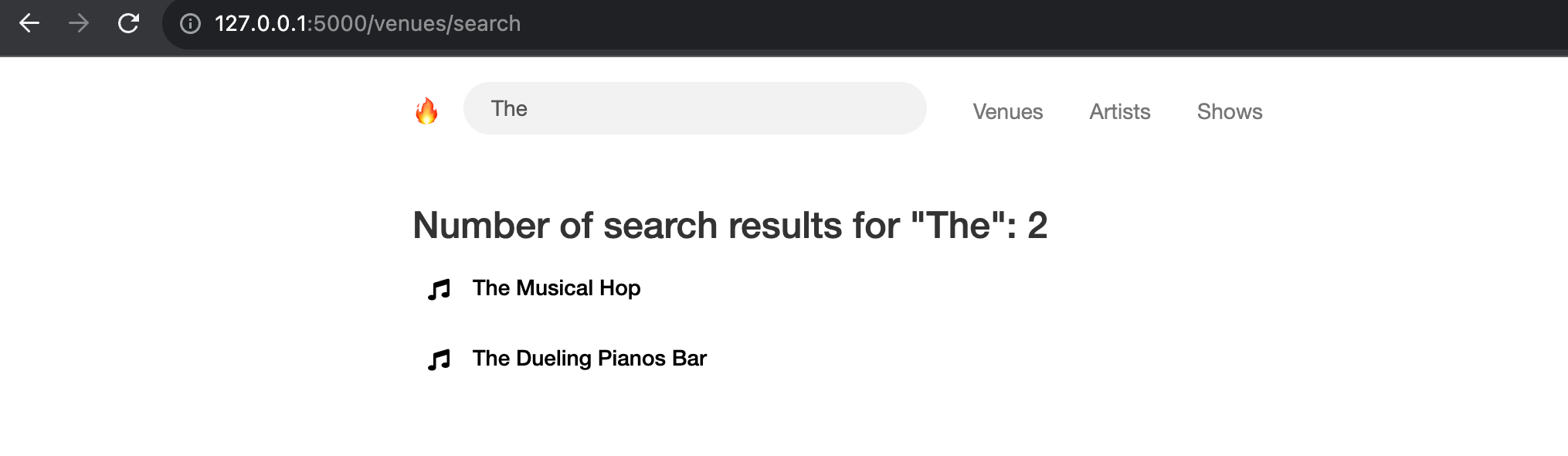

venue_search

Detail Data​

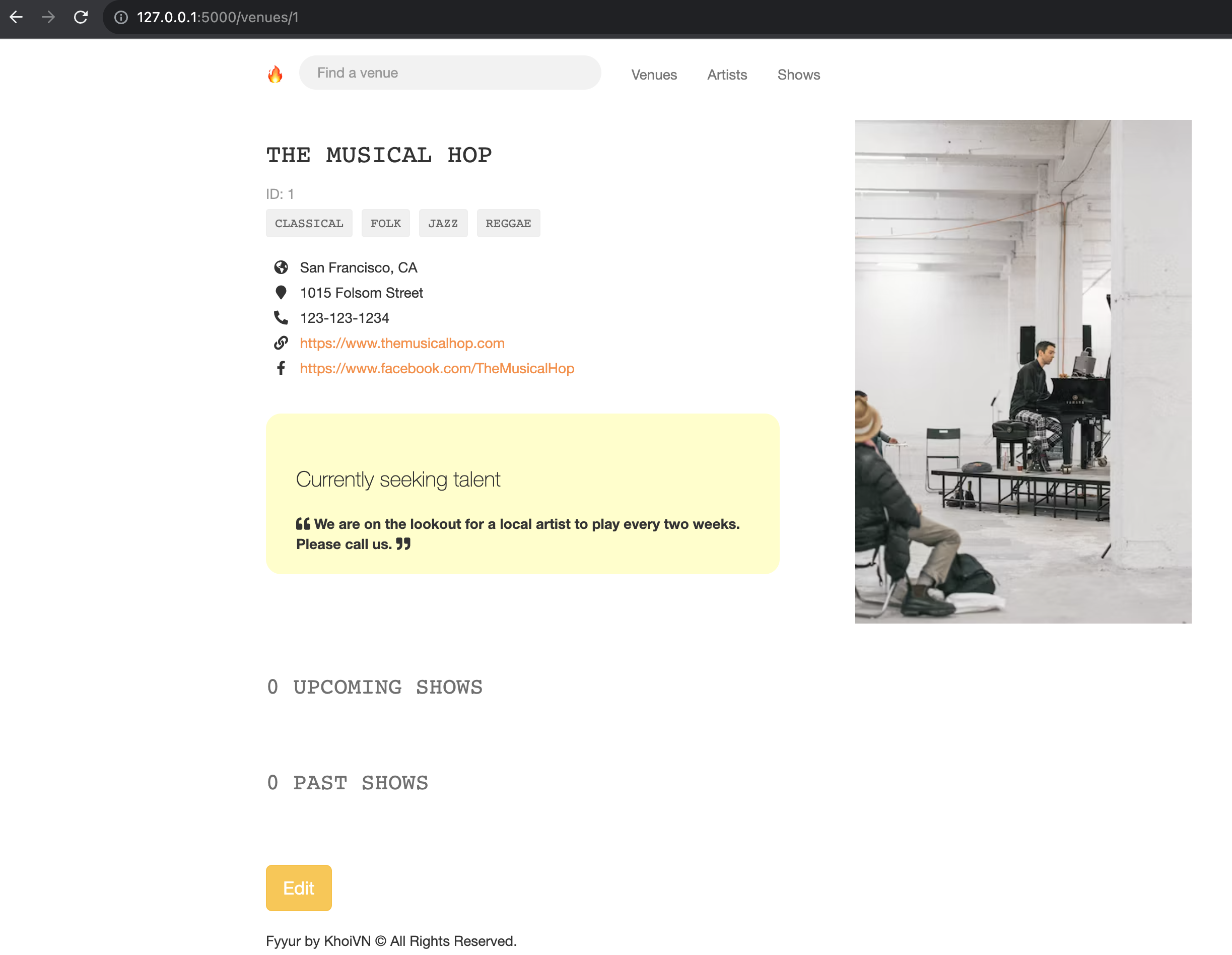

venue_detail_page

Upcoming Shows​

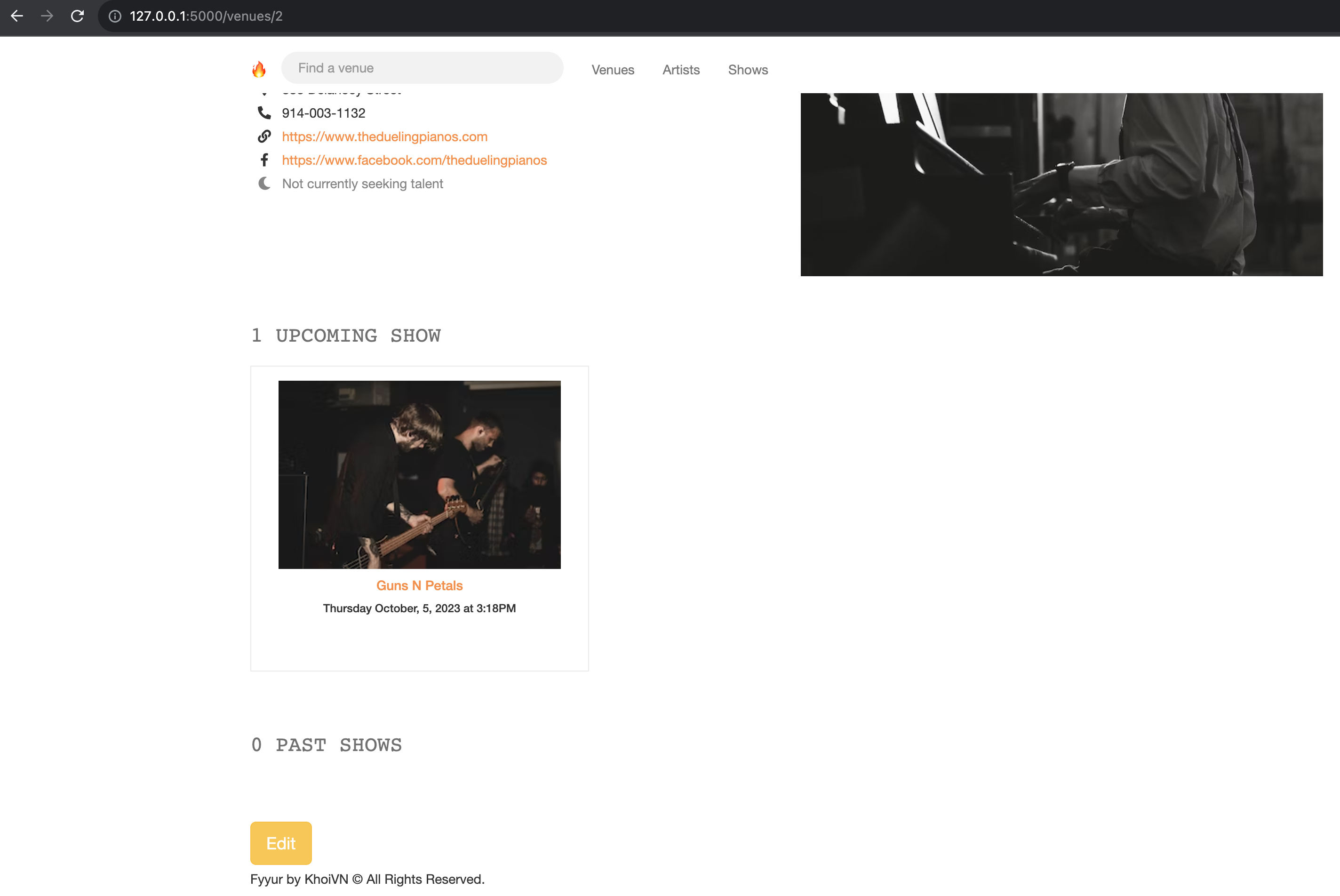

show_venue_upcoming

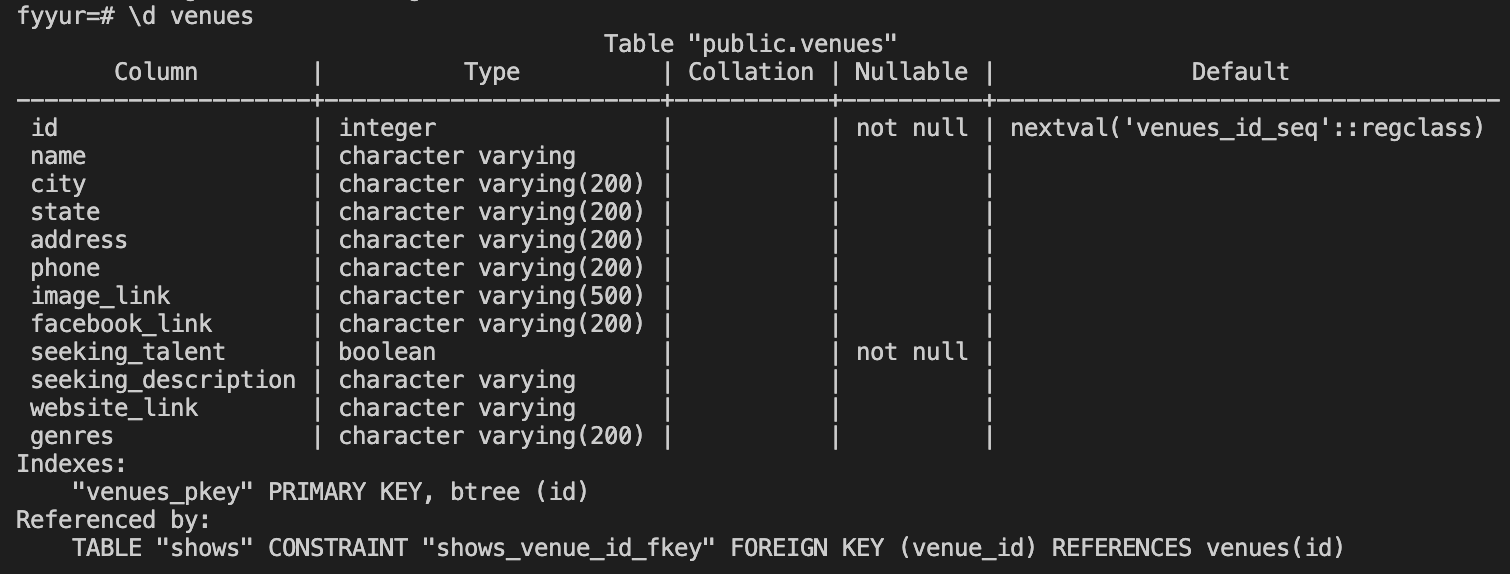

Venues Database​

psql_venue

 id |          name          |     city      | state |       address       |    phone     |                                                              image_link                                                               |               facebook_link               | seeking_talent |                                seeking_description                                |           website_link           |           genres
----+------------------------+---------------+-------+---------------------+--------------+---------------------------------------------------------------------------------------------------------------------------------------+-------------------------------------------+----------------+-----------------------------------------------------------------------------------+----------------------------------+----------------------------
  1 | The Musical Hop        | San Francisco | CA    | 1015 Folsom Street  | 123-123-1234 | https://images.unsplash.com/photo-1543900694-133f37abaaa5?ixlib=rb-1.2.1&ixid=eyJhcHBfaWQiOjEyMDd9&auto=format&fit=crop&w=400&q=60    | https://www.facebook.com/TheMusicalHop    | t              | We are on the lookout for a local artist to play every two weeks. Please call us. | https://www.themusicalhop.com    | Classical,Folk,Jazz,Reggae
  2 | The Dueling Pianos Bar | New York      | NY    | 335 Delancey Street | 914-003-1132 | https://images.unsplash.com/photo-1497032205916-ac775f0649ae?ixlib=rb-1.2.1&ixid=eyJhcHBfaWQiOjEyMDd9&auto=format&fit=crop&w=750&q=80 | https://www.facebook.com/theduelingpianos | f              |                                                                                   | https://www.theduelingpianos.com | Classical,Hip-Hop,R&B
(2 rows)

Artists Page​

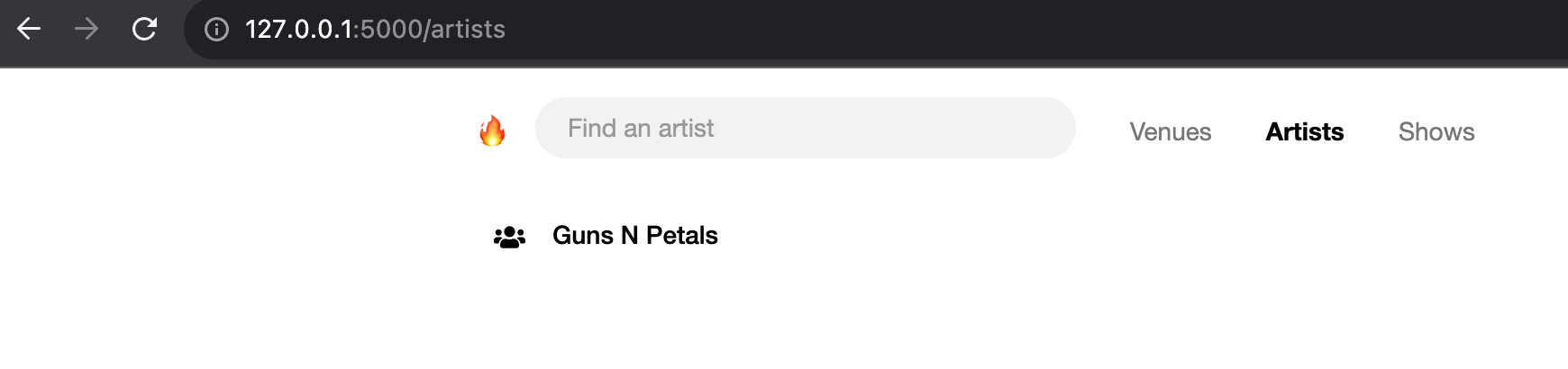

artist_page

Insert Data​

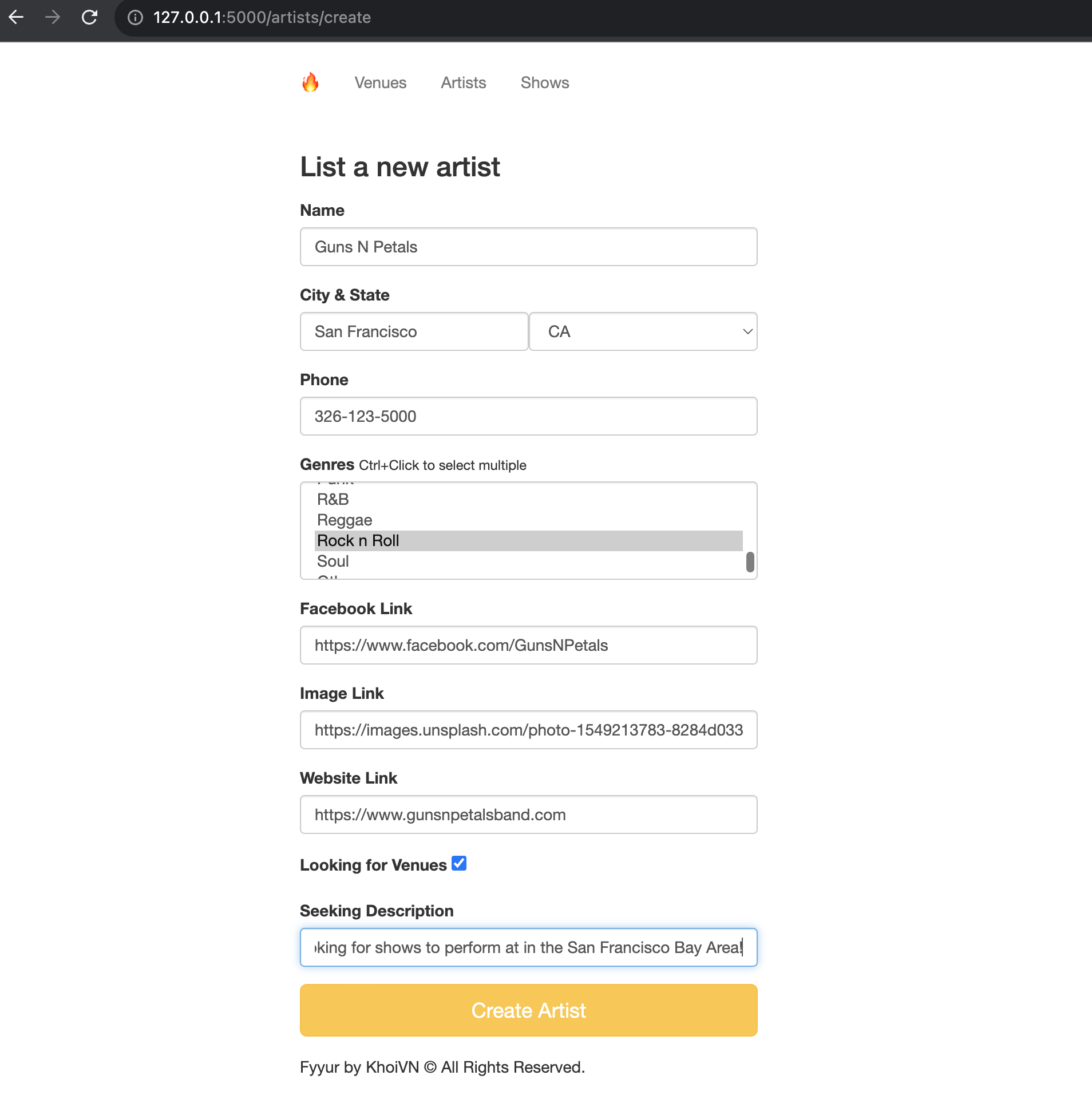

post_artist

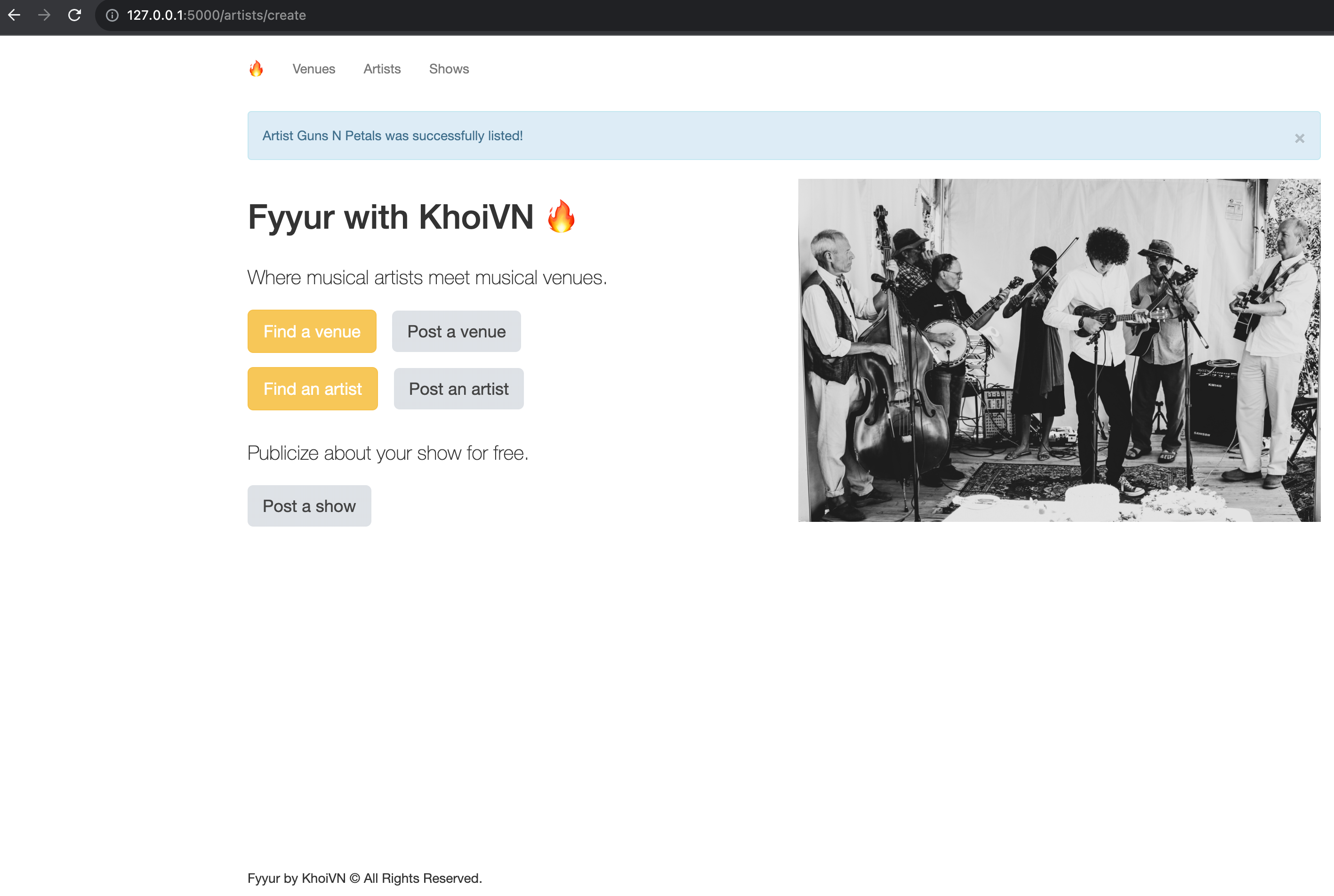

Then, insert successfully: post_artist_success

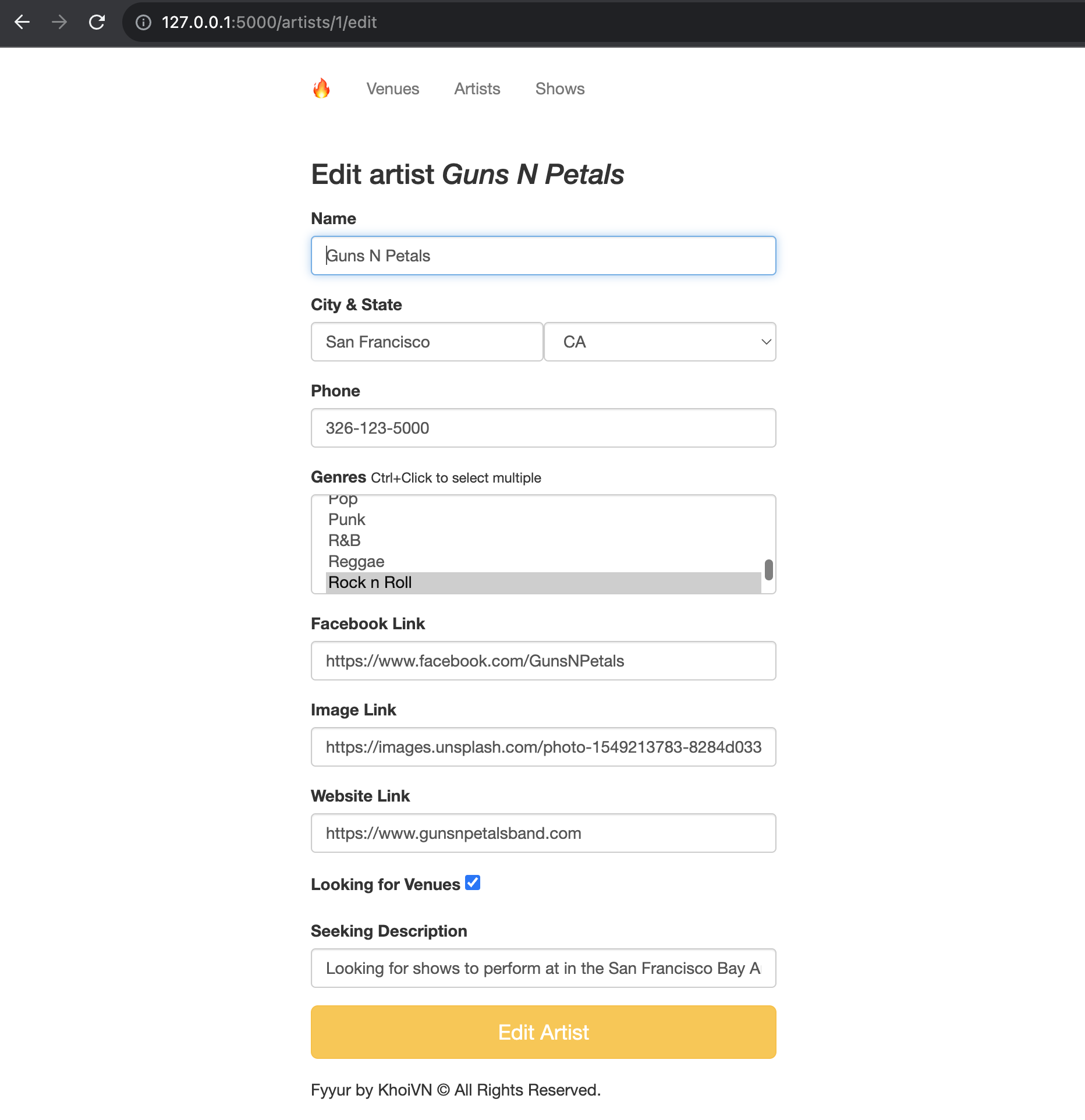

Edit Data​

artist_edit

Search Data​

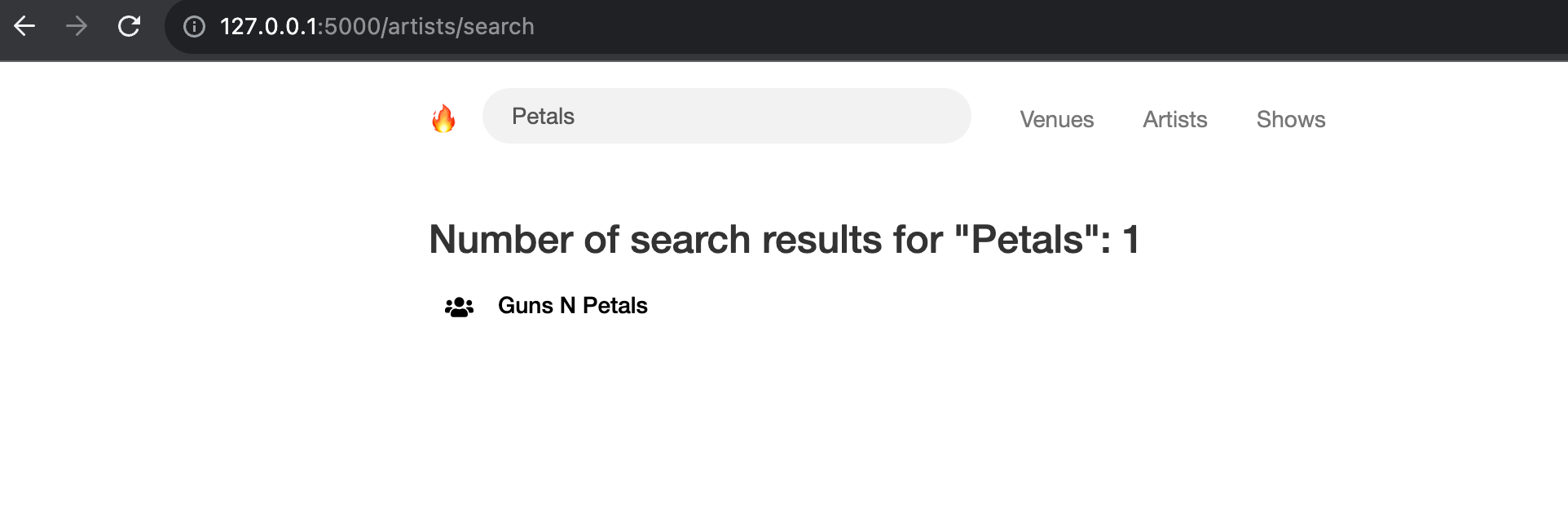

artist_search

Detail Data​

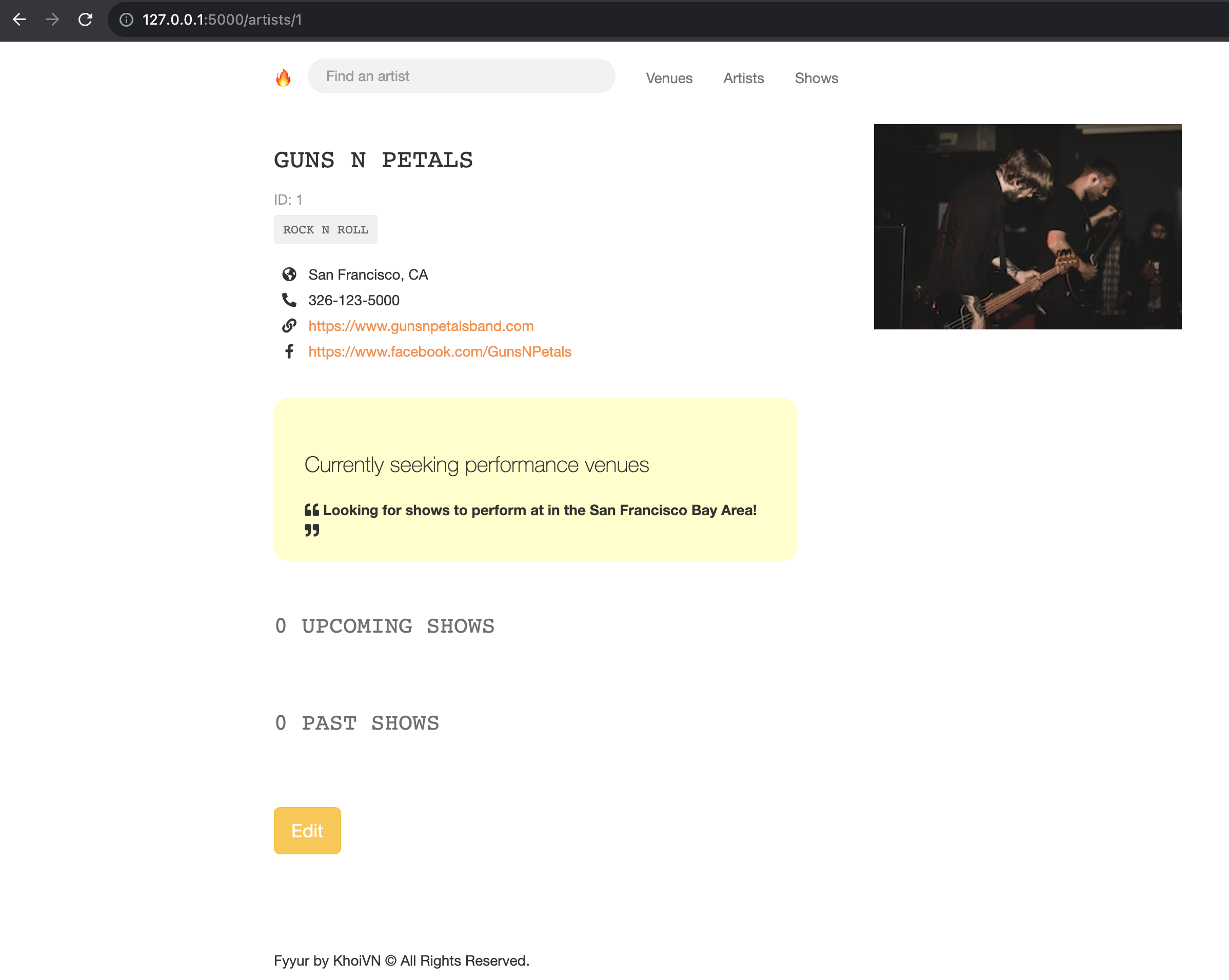

artist_detail_page

Upcoming Shows​

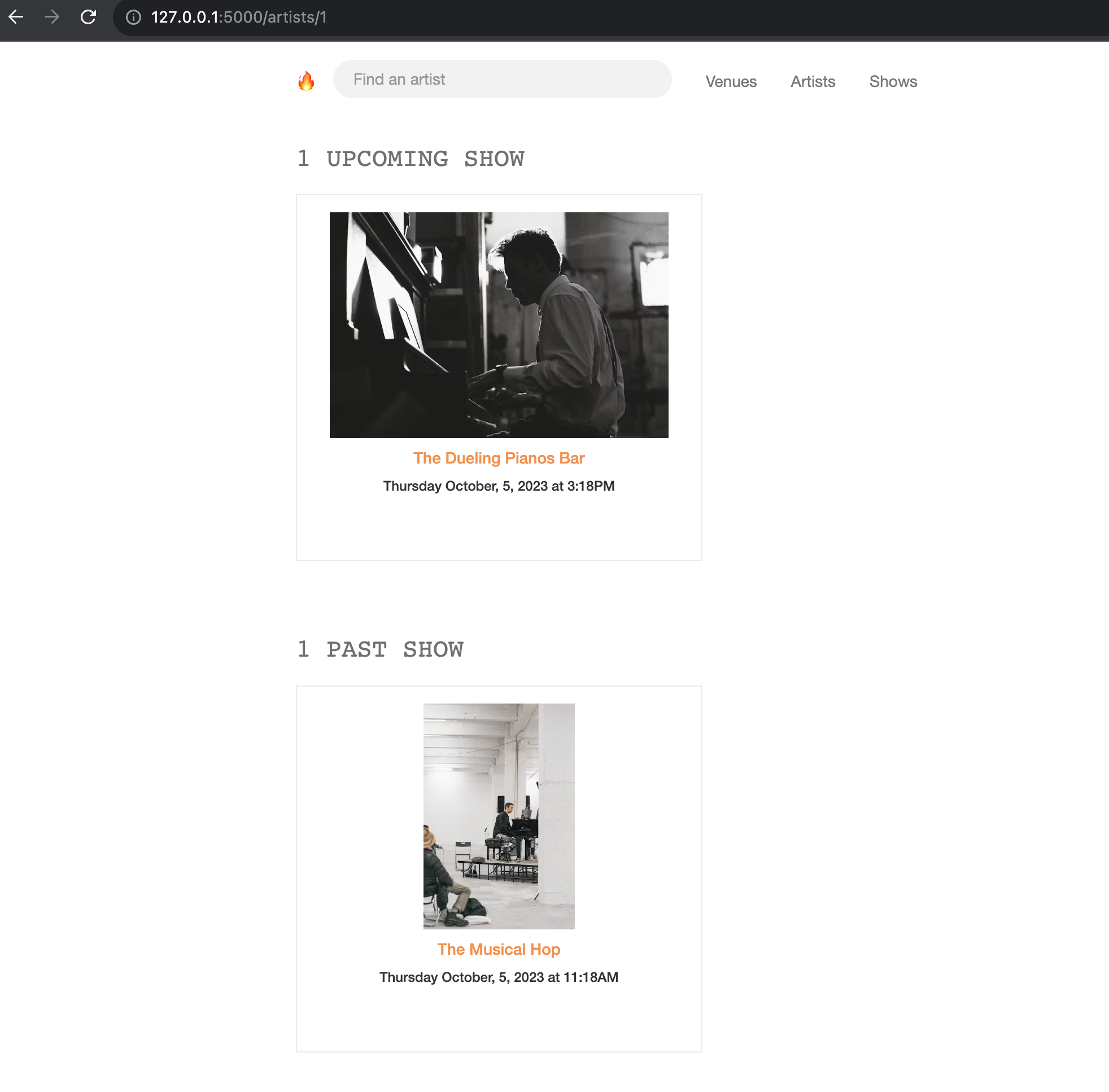

show_artist_upcoming

Artists Database​

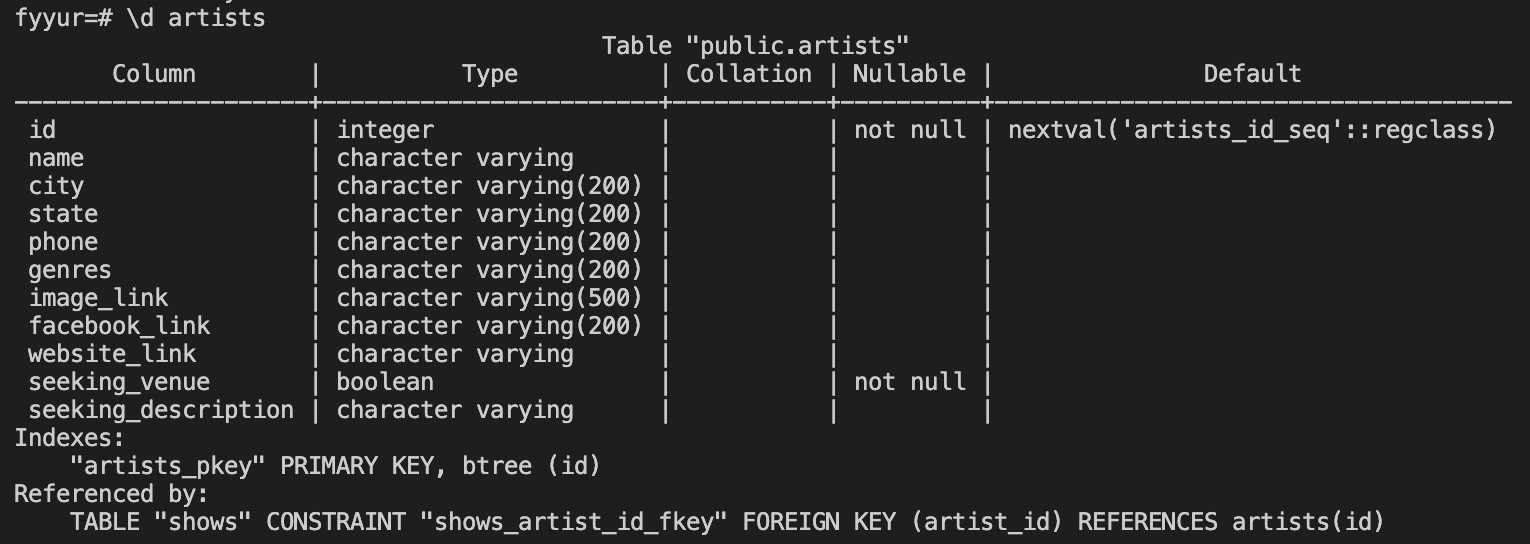

psql_artist

 id |     name      |     city      | state |    phone     |   genres    |                                                             image_link                                                             |            facebook_link             |          website_link           | seeking_venue |                      seeking_description
----+---------------+---------------+-------+--------------+-------------+------------------------------------------------------------------------------------------------------------------------------------+--------------------------------------+---------------------------------+---------------+----------------------------------------------------------------
  1 | Guns N Petals | San Francisco | CA    | 326-123-5000 | Rock n Roll | https://images.unsplash.com/photo-1549213783-8284d0336c4f?ixlib=rb-1.2.1&ixid=eyJhcHBfaWQiOjEyMDd9&auto=format&fit=crop&w=300&q=80 | https://www.facebook.com/GunsNPetals | https://www.gunsnpetalsband.com | t             | Looking for shows to perform at in the San Francisco Bay Area!
(1 row)

Shows Page​

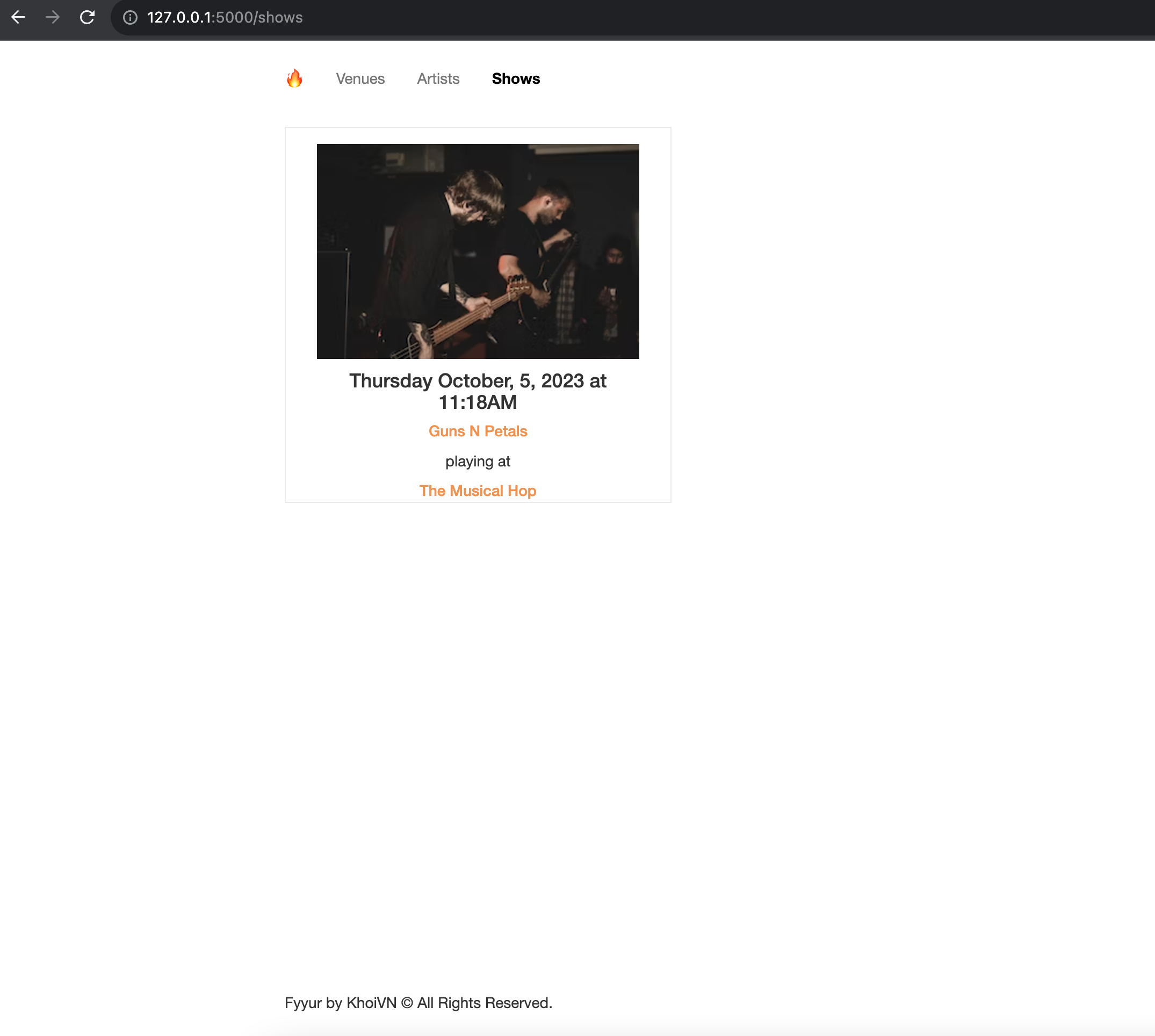

show_page

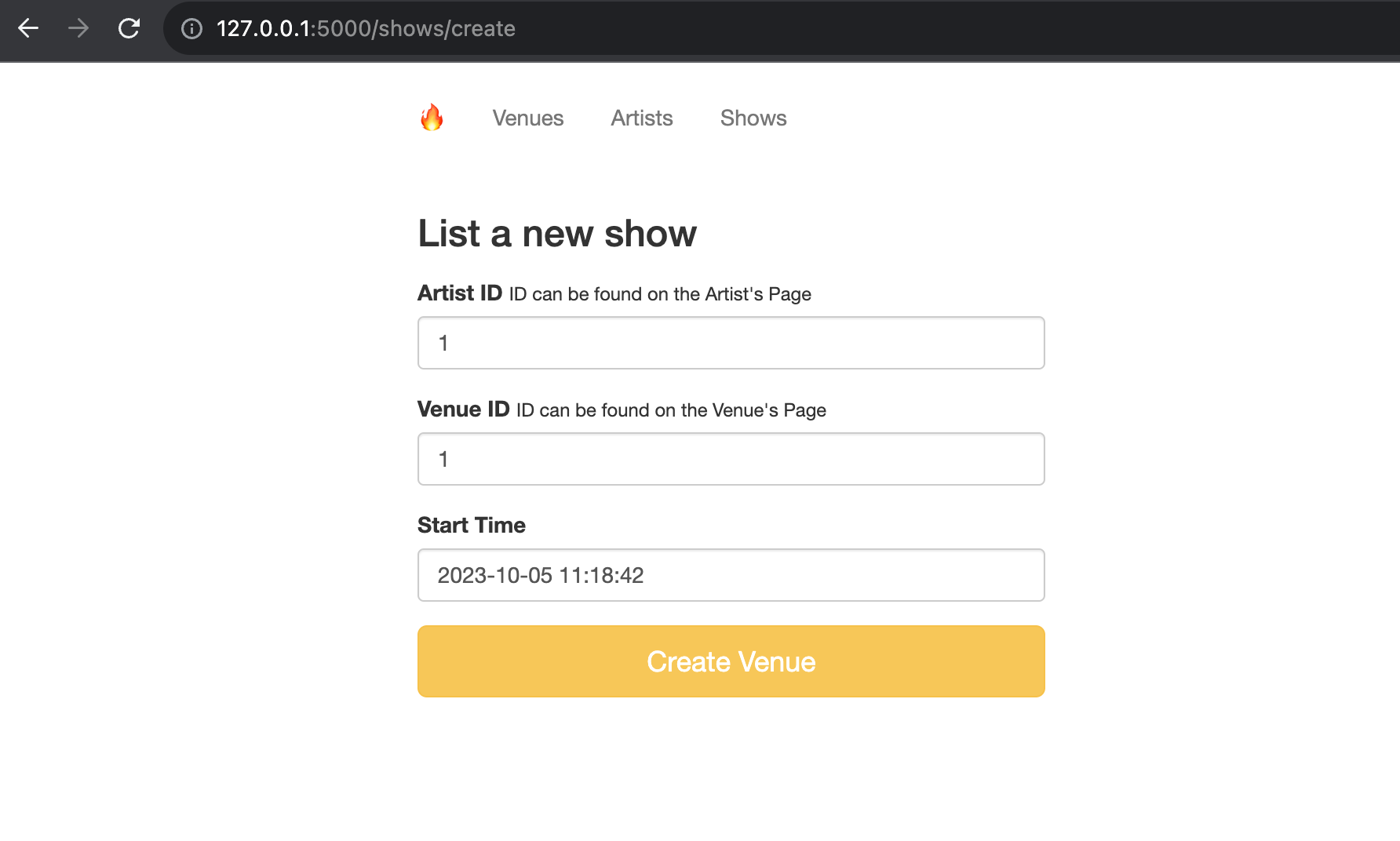

Insert Data​

post_show

Then, insert successfully: post_show_success

Shows Database​

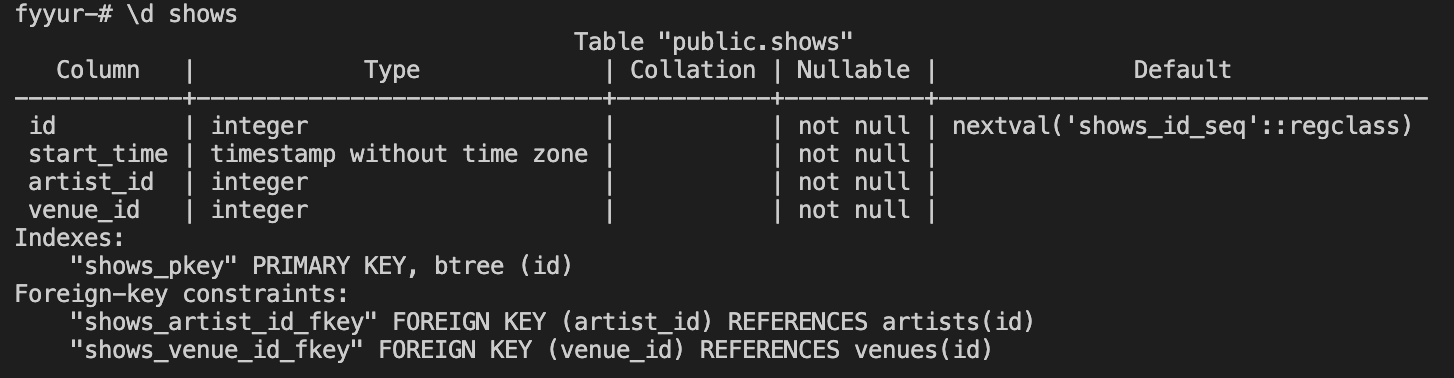

psql_show

 id |     start_time      | artist_id | venue_id
----+---------------------+-----------+----------
  1 | 2023-10-05 11:18:42 |         1 |        1
  2 | 2023-10-05 15:18:42 |         1 |        2
(2 rows)

Migration​

Initial migration​

flask db init

Result:

Creating directory '/Users/macos/projects/Kelvin/cd0046-SQL-and-Data-Modeling-for-the-Web/migrations' ...  done
Creating directory '/Users/macos/projects/Kelvin/cd0046-SQL-and-Data-Modeling-for-the-Web/migrations/versions' ...  done
Generating /Users/macos/projects/Kelvin/cd0046-SQL-and-Data-Modeling-for-the-Web/migrations/script.py.mako ...  done
Generating /Users/macos/projects/Kelvin/cd0046-SQL-and-Data-Modeling-for-the-Web/migrations/env.py ...  done
Generating /Users/macos/projects/Kelvin/cd0046-SQL-and-Data-Modeling-for-the-Web/migrations/README ...  done
Generating /Users/macos/projects/Kelvin/cd0046-SQL-and-Data-Modeling-for-the-Web/migrations/alembic.ini ...  done
Please edit configuration/connection/logging settings in '/Users/macos/projects/Kelvin/cd0046-SQL-and-Data-Modeling-for-the-Web/migrations/alembic.ini' before proceeding.

Migrate​

flask db migrate

Check in migrations/versions/ for the migration file.

Result:

INFO  [alembic.runtime.migration] Context impl PostgresqlImpl.
INFO  [alembic.runtime.migration] Will assume transactional DDL.
INFO  [alembic.autogenerate.compare] Detected added table 'artists'
INFO  [alembic.autogenerate.compare] Detected added table 'venues'
INFO  [alembic.autogenerate.compare] Detected added table 'shows'
  Generating /Users/macos/projects/Kelvin/cd0046-SQL-and-Data-Modeling-for-the-Web/migrations/versions/256536967864_.py ...  done
